Bench Type Digital Multimeter UNI-T UT805A

id: 830022
Bench Type Digital Multimeter UNI-T UT805A
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 396.00
Notify
when in stock
Overview
6.1 kg Warranty: 24 months
Desktop digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, frequency, capacitance. It also performs continuity and diode tests.
USD 396.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 396.00
Notify
when in stock
Impossible to estimate the shipping cost

You may also like

Bench Digital Multimeter RIGOL DM3068
Bestseller
Add to wishlist
Bench Digital Multimeter RIGOL DM3068
USD 882.00
Add to wishlist
Add to cart
Reliable, cost effective, DMM for measuring AC/DC voltage, AC/DC current, resistance (2 and 4 wire), capacitance, frequency, temperature, and performing diode test,
Bestseller
Availability in stock: HK
Shipping cost
ID: 840849 8.5 kg 110, 220
Precision Digital Multimeter Siglent SDM3055
Add to wishlist
Precision Digital Multimeter Siglent SDM3055
USD 499.00
USD 449.10
Add to wishlist
Add to cart
Measuring AC/DC voltage, AC/DC current, capacitance, frequency, period, temperature, connectivity test, diode test. 4.3-inch TFT color LCD.
Availability in stock: HK
Shipping cost
ID: 854722 6 kg 110, 220
Description

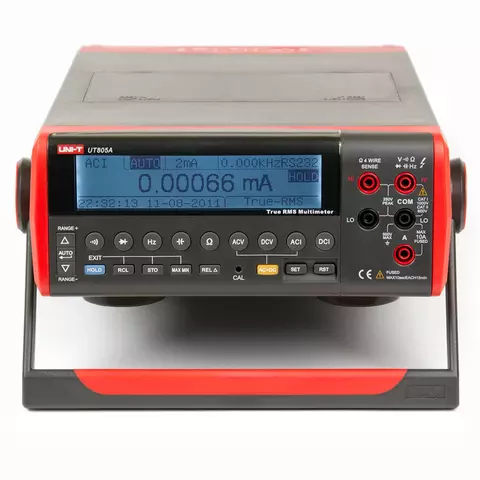

This UNI-T UT805A bench type digital multimeter is designed for measuring AC/DC current, AC/DC voltage, resistance, capacitance, frequency, and can be used for continuity and diode tests.

Features

  • Measurement functions:
    • AC/DC voltage
    • AC/DC current
    • capacitance
    • resistance
    • frequency
    • diode test
    • continuity test
  • Auto ranging
  • Data hold
  • Low battery indication

Video Review

Read more
Description

This UNI-T UT805A bench type digital multimeter is designed for measuring AC/DC current, AC/DC voltage, resistance, capacitance, frequency, and can be used for continuity and diode tests.

Features

  • Measurement functions:
    • AC/DC voltage
    • AC/DC current
    • capacitance
    • resistance
    • frequency
    • diode test
    • continuity test
  • Auto ranging
  • Data hold
  • Low battery indication

Video Review

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Display 199999 digit LCD, backlight, 128 × 28 mm
DC voltage Range 200 mV / 2 V / 20 V / 200 V / 1000 V
Accuracy ±(0.015%+3)
AC voltage Range 2 V / 20 V / 200 V / 750 V
Accuracy ±(0.2%+100)
DC current Range 2 mA / 200 mA / 10 A
Accuracy ±(0.03%+10)
AC current Range 2 mA / 200 mA / 10 A
Accuracy ±(0.3%+100)
Resistance Range 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ
Accuracy ±(0.02%+6)
Capacitance Range 6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF
Accuracy ±(2%+5)
Frequency Range 10 Hz ~ 60 MHz
Accuracy ±(0.1%+3)
Power AC 220 V / 50 Hz
Dimensions 300 × 245 × 105 mm
Weight 2.4 kg

User Manual

PDF  Download UNI-T UT805A User Manual.

Sofware

Download UNI-T UT805A Sofware.

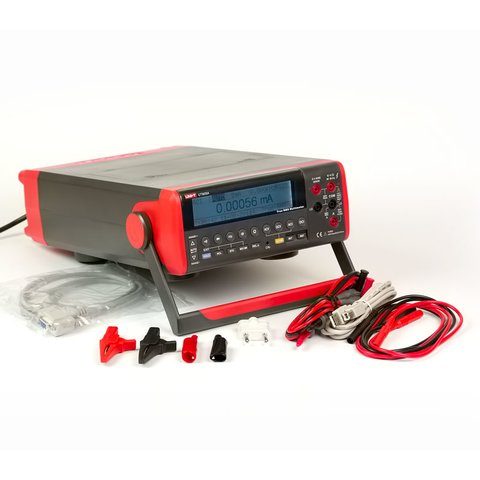

Package Contains

  • Multimeter UNI-T UT805A (1 pc.)
  • Test lead (1 pc.)
  • Test line (1 pc.)
  • Multi-purpose socket (1 pc.)
  • RS232C interface cable (1 pc.)
  • USB interface cable (1 pc.)
  • AC 220 V power cord (1 pc.)
  • User manual (1 pc.)
Specifications
Type
  • digital
  • desktop
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
Additional Functions
  • acoustic continuity test
  • data hold
  • connection to PC (USB)
  • connection to PC (RS232)
  • max / min
  • RMS measurement
  • relative measurements
  • diode test
  • backlight
Range Selection
  • auto range
Digit Capacity
  • 199 999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 20 MOhm
Capacitance
  • up to 6000 μF
Frequency
  • up to 60 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • yes
Backlight
  • yes
PC connection
  • USB
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
