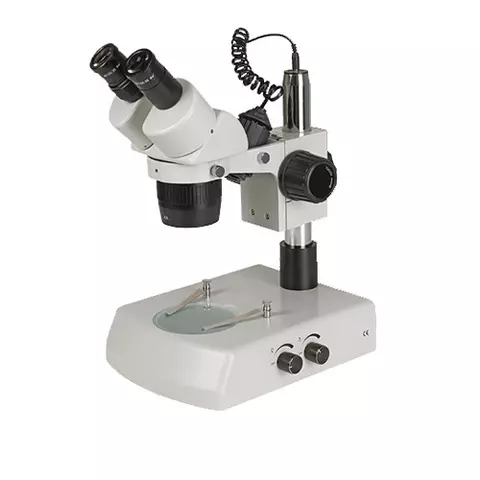

Binocular Microscope ST60-24B2 with lighting
id: 7337
Binocular Microscope ST60-24B2 with lighting
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 250.00
Overview
Bestseller
9.5 kg 220 V
Availability in stock:
HK
Warranty: 6 months Binocular Microscope with built-in and built-out illumination system Read more
Buy wholesale and save
Note! This item is shipped within 10 working days.
Description
ST60-24B2 is a binocular microscope with a rotating 2x/4x magnifying object lens on a bay. It features a precise optical system with adjustable oculars (up to 45°).Possibility of switching between 2x/4x modes and up to 180° rotate angle of objective lens provide a clear stereo image and a wide field of view. ST60-24B1 is used in the electronic industry and precise machine building for assembling and inspecting of the products. With it's high resolution, microscope is capable of studying objects with an irregular surface.
Note! We recommend using the protective glass while conducting soldering operations under this microscope.
Features
- Working distance can be optionally incresed to 165 mm using the ST60 0.5x additional objective lens.
- Zoom can be optionaly increased to 40x/80x using the additional 20X ocular lens.
- Illumination: Built-in and built-out illumination system.
- Focusing: two focusing knobs also used for tension adjustment, slide range 49mm.
- Turret objective 2X/4X, 1X/2X and 1X/3X for option.
- LED illuminator with 24 leds and LED illuminator with 48 leds can also be optionally ordered as additional source of light.
- Wide field, high-eyepoint eyepiece WF10X/20mm, Optional WF15X/15mm and WF20X/10mm eyepiece.
Technical Specifications
| Ocular Lens | 10X |
| Objective Lens | 2X/4X |
| Oculars Adjust Angle | 45° |
| Microscope Rotating Angle | 360° |
| Distance Between Oculars | 55-75 mm |
| Dioptric Correction | +- 5 dioptre |
| Working Distance | 100 mm |
| Zoom | 20x/40x |
Optical Parameter
| Magnification of objective | Eyepiece | |||||
|---|---|---|---|---|---|---|
| WF10X20 | WF15X15 | WF20X10 | ||||
| Total magnification | Viewing Field of specimen | Total magnification | Viewing Field of specimen | Total magnification | Viewing Field of specimen | |
| 1X | 10X | 20 | 15X | 15 | 20X | 10 |
| 2X | 20X | 10 | 30X | 7.5 | 40X | 5 |
| 3X | 30X | 6.7 | 45X | 5 | 60X | 3.3 |
| 4X | 40X | 5 | 60X | 3.75 | 80X | 2.5 |
ST60 Auxiliary Objective
| Auxiliary objective | Magnification | Working distance (mm) |
|---|---|---|
| 0.5 | 0.5X | 165 |
| 1.5 | 1.5X | 45 |
| 2 | 2X | 30 |
Specification and Option
| Specification | Model | ||||||
|---|---|---|---|---|---|---|---|
| Parts | Description | ST60-24B1 | ST60-24B2 | ST60-24B3 | ST60-24T1 | ST60-24T2 | ST60-24T3 |
| Eyepiece | SZM-EWh10X/20mm | Yes | Yes | Yes | Yes | Yes | Yes |
| SZM-EWh10X/20rmm | – | – | – | – | – | – | |
| SZM-EWh15X/15mm | – | – | – | – | – | – | |
| SZM-EHWh20X/10mm | – | – | – | – | – | – | |
| Objective | 1X/100mm | – | – | – | – | – | – |
| 2X/100mm | Yes | Yes | Yes | Yes | Yes | Yes | |
| 3X/100mm | – | – | – | – | – | – | |
| 4X/100mm | Yes | Yes | Yes | Yes | Yes | Yes | |
| Eye-cap | – | Yes | Yes | Yes | Yes | Yes | Yes |
| Head | ST6024 binocular | Yes | Yes | Yes | – | – | – |
| ST6024TR Trinocular | – | – | – | Yes | Yes | Yes | |
| Focusing Bracket | SZM-A1 | Yes | Yes | Yes | Yes | Yes | Yes |
| Stand | SZM-ST1 | Yes | – | – | Yes | – | – |
| SZM-ST2 | – | Yes | – | – | Yes | – | |
| SZM-ST3 | – | – | Yes | – | – | Yes | |
| SZ-STL1 | – | – | – | – | – | – | |
| SZ-STL2 | – | – | – | – | – | – | |
| Light | SZM-L1 | – | Yes | Yes | – | Yes | Yes |
Package Contents
- ST60-24B2 binocular microscope — 1 pc.
- 2x/4x objective lens — 1 pc.
- SZM-EWh10X/20 mm ocular lens — 1 pc.
- Satinated glass plate — 1 pc.
- Protective holster — 1 pc.
- Rubber ocular straps — 1 pc.
- User's Guide — 1 pc.
Specifications
| Type |
|
| Maximum Zoom Ratio |
|
| Illumination |
|
| Zoom Rate Control Method |
|
