Binocular Microscope XTX-7C-W (10x; 2x/4x)

id: 810796
Binocular Microscope XTX-7C-W (10x; 2x/4x)
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 133.00
Notify
when in stock
Overview
4.2 kg 220 V Warranty: 6 months
Fine optical system, 45° inclined and 360° rotable viewing head with locked-in eyepiece provide sharp stereo erect image over a wide field view.
USD 133.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 133.00
Notify
when in stock
Impossible to estimate the shipping cost
Description

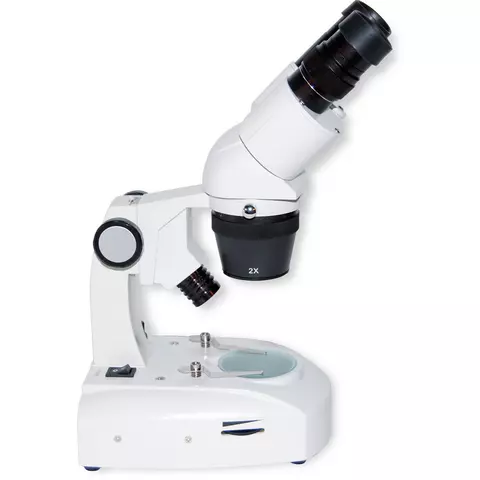

2X-4X zoom binocular microscope supplied with arm-curved-style stand. Fine optical system, 45° inclined and 360° rotable viewing head with locked-in eyepiece provide sharp stereo erect image over a wide field view.

With this stereo microscope you can change the magnification to suit your needs without refocusing. XTX-7C-W can be used in electronics and precision machine industries for assembling and inspection of products; of it's high resolution, the microscope is suitable for observation of irregular bodies.

Features:

  • Sharp stereo erect image over a wide field view.
  • Main body 360° rotable.
  • Illumination:
    • Upper reflected Halogen light: 12 V/10 W;
    • Down light: 12 V/10 W;
  • Electric apparatus has CE approval.
  • Power supply 220 V/50 Hz

Specification:

  • Rotational objective 2X/4X.
  • Binocular viewing microscope body
  • Interpupilary distance: 55-75 mm.
  • Left ocular-tube diopter adjustment +/-5 dp.
  • Electronic apparatus has CE approval.

Package contains

  • Binocular Microscope XTX-7C-W
  • Objective lenses ZOOM 2X/4X
  • Eyepiece: WF 10X
  • Plate: frosted glass
Read more
Description
2X-4X zoom binocular microscope supplied with arm-curved-style stand. Fine optical system, 45° inclined and 360° rotable viewing head with locked-in eyepiece provide sharp stereo erect image over a wide field view.

With this stereo microscope you can change the magnification to suit your needs without refocusing. XTX-7C-W can be used in electronics and precision machine industries for assembling and inspection of products; of it's high resolution, the microscope is suitable for observation of irregular bodies.

Features:

  • Sharp stereo erect image over a wide field view.
  • Main body 360° rotable.
  • Illumination:
    • Upper reflected Halogen light: 12 V/10 W;
    • Down light: 12 V/10 W;
  • Electric apparatus has CE approval.
  • Power supply 220 V/50 Hz

Specification:

  • Rotational objective 2X/4X.
  • Binocular viewing microscope body
  • Interpupilary distance: 55-75 mm.
  • Left ocular-tube diopter adjustment +/-5 dp.
  • Electronic apparatus has CE approval.

Package contains

  • Binocular Microscope XTX-7C-W
  • Objective lenses ZOOM 2X/4X
  • Eyepiece: WF 10X
  • Plate: frosted glass
Specifications
Type
  • maintenance
  • binocular
Maximum Zoom Ratio
  • up to 40X
Illumination
  • upper light
  • bottom light
Zoom Rate Control Method
  • discrete adjustment of multiplicity
