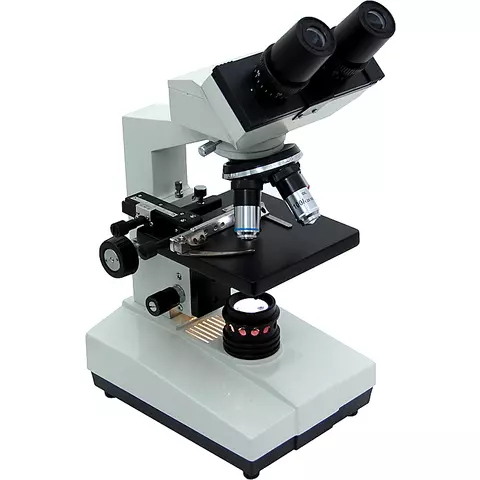

Biological Microscope NK-103C

id: 813711
Biological Microscope NK-103C
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 263.00
Contact
sales team
Overview
5.6 kg 220 V Warranty: 6 months
Binocular biological microscope NK-103C is designed to use in biology and medicine: in hematologic, urological, pathologoanatomic, cytological, dermatological, biological and clinical tests. Focusable Abbe NA1.25 condenser
USD 263.00
Contact
sales team
Compare
Compare
USD 263.00
Contact
sales team
Impossible to estimate the shipping cost
Description
Binocular biological microscope NK-103C is designed to use in biology and medicine: in hematologic, urological, pathologoanatomic, cytological, dermatological, biological and clinical tests.
  • 45 ° inclined and 360° rotational precise optical system
  • 3-x revolving nosepiece and large stage with special hard durable covering
  • 10X wide-angle eyepiece WF10
  • Focusable Abbe NA1.25 condenser
  • Achromatic objectives DIN4X,40X, 100X
  • Attachable stage with a slide clips
  • Sharpness COARSE/FINE adjustment
  • Built-in incandescent lamp 220V/15W, brightness adjustable

Specifications of NK-series

Model NK-103A NK-103B NK-103C
System Monocular head, at 45°, 360° rotatable Binocular head, at 45°, 360° rotatable
Eyepice WF 10X
Objective Achromatic objectives DIN4X,10X,40X(s) Achromatic objectives DIN4X,,40X,(s), 100X(oil)
Stage Plain stage: 120 × 130mm with slide clips

Attachable stage with slide clips

Condenser

-

Abbe NA1.25 with iris diaphragm and filter
Illumination Built-in illumination 220V/15W, brightness adjustable (incandescent lamp)
Read more
Description
Binocular biological microscope NK-103C is designed to use in biology and medicine: in hematologic, urological, pathologoanatomic, cytological, dermatological, biological and clinical tests.
  • 45 ° inclined and 360° rotational precise optical system
  • 3-x revolving nosepiece and large stage with special hard durable covering
  • 10X wide-angle eyepiece WF10
  • Focusable Abbe NA1.25 condenser
  • Achromatic objectives DIN4X,40X, 100X
  • Attachable stage with a slide clips
  • Sharpness COARSE/FINE adjustment
  • Built-in incandescent lamp 220V/15W, brightness adjustable

Specifications of NK-series

Model NK-103A NK-103B NK-103C
System Monocular head, at 45°, 360° rotatable Binocular head, at 45°, 360° rotatable
Eyepice WF 10X
Objective Achromatic objectives DIN4X,10X,40X(s) Achromatic objectives DIN4X,,40X,(s), 100X(oil)
Stage Plain stage: 120 × 130mm with slide clips

Attachable stage with slide clips

Condenser

-

Abbe NA1.25 with iris diaphragm and filter
Illumination Built-in illumination 220V/15W, brightness adjustable (incandescent lamp)
Specifications
Type
  • biological
  • binocular
  • laboratory
Maximum Zoom Ratio
  • up to 400X
Illumination
  • bottom light
Zoom Rate Control Method
  • discrete adjustment of multiplicity
