Crimping Tool Pro'sKit CP-353

id: 840475
0.8 kg
Ratchet crimper designed for non-insulated pin terminals and insulated ring terminals. DIN: 4-6, 10, 16, 25 mm².
Contact
sales team
Contact
sales team
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

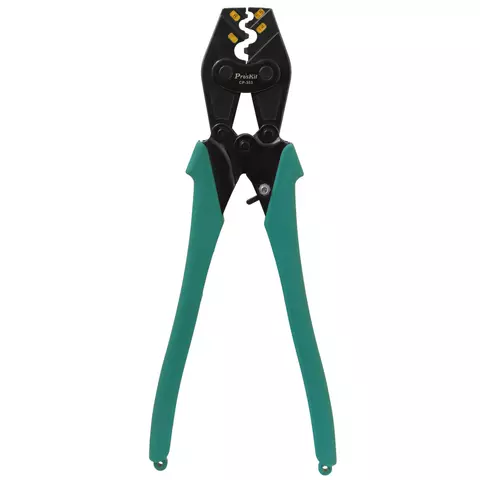

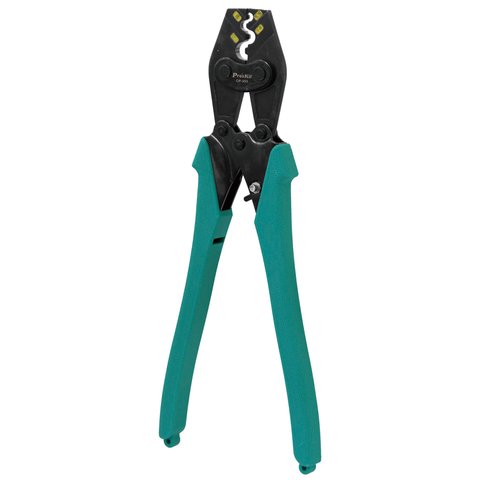

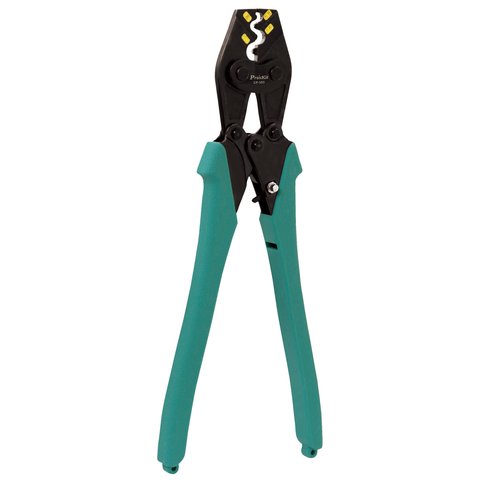

Pro'sKit CP-353 is a ratchet crimper designed for non-insulated pin terminals and insulated ring terminals.

Application

  • Non-insulated pin terminals and insulated ring terminals.
  • DIN: 4-6, 10, 16, 25 mm².
Non-insulated pin terminals Pin terminals
Insulated ring terminals Ring terminals

Features

  • Ratchet mechanism ensures mechanical advantage and up to 35% energy saving.
  • Made of high-quality carbon steel with black oxide finish.
  • Ergonomically shaped non-slip TPR handles for user comfort.
  • Perfect for electronics, electrical and home electricity installation purposes.

Technical Specifications

Material Body S45C
Die AISI 4140
Handle TPR
Hardness 45±3
Applications AWG:12-10/8/6/4/22 mm²
DIN:4-6/10/16/25 mm²
JIS:5.5/8.0/14.0
OAL 332 mm
Specifications
Wire section
  • 4.0 - 6.0 sq, mm
  • 10 sq, mm
  • 16 sq, mm
  • 25 sq, mm
