Overview
5 kg Warranty: 24 months
Programmable switching single-channel DC power supply. Total power 100 W, output voltage 0~60 V, output current 0~5 A, resolution 10 mV/1 mA. Read more
Description

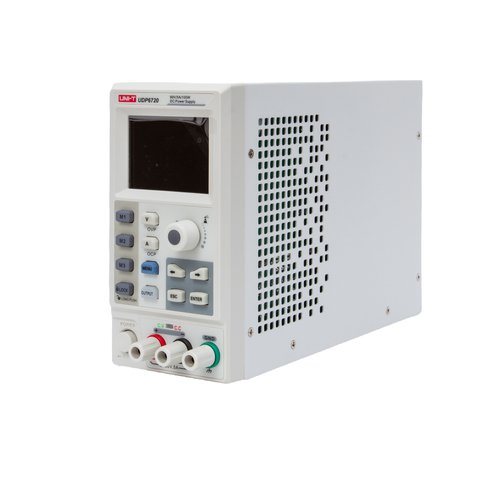

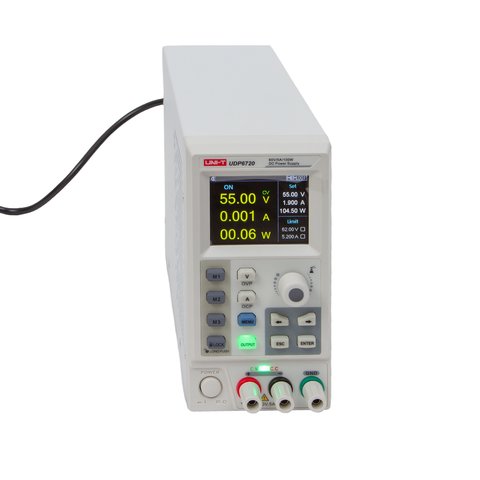

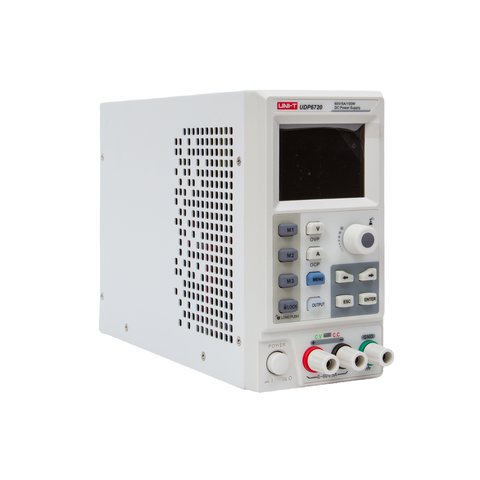

UNI-T UDP6720 is a programmable switching single-channel power supply with a wide output range and high performance. The device is equipped with a high-definition LCD that provides better measurement and debugging performance.
The UNI-T UDP6720 power supply can be used in educational institutions, research and development, manufacturing, and industry.
Features
- Fully digital control
- High resolution (10 mV/1 mA in full range)
- Low ripple and noise
- Software calibration

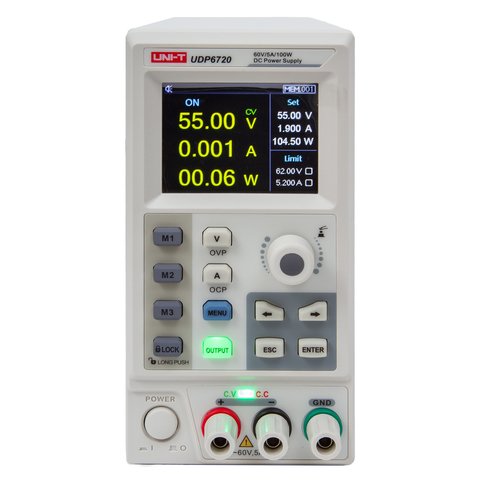

- High-definition LCD
- Remote Sense compensation

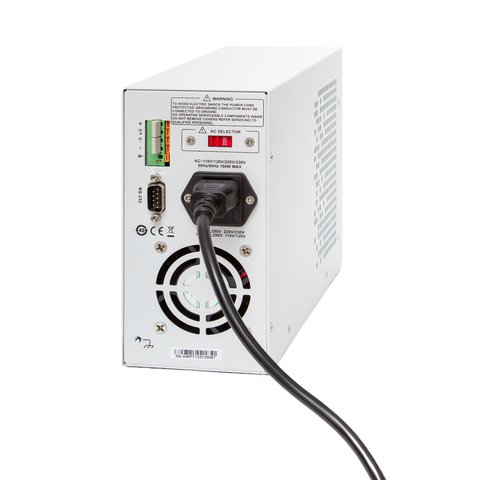

- Support RS-232 communication
- Intelligent fan regulation
- Rated voltage and current output
- High reliability: OVP (overvoltage protection), OCP (overcurrent protection), or OTP (over temperature protection).
- Output on/off control
- High performance-price ratio
- Storage for a 3×200 preset voltage and current output
- Support List Mode (Time Function) and Delayer Mode
Technical Specifications
| Model | UDP6720 | UDP6721 | |
| Output Range | Voltage | 0~60 V | 0~60 V |
| Current | 0~5 A | 0~8 A | |
| Power | 100 W | 180 W | |
| Load Regulation | Voltage | <0.01%+3 mV | <0.01%+5 mV |
| Current | <0.01%+3 mA | <0.01%+5 mA | |
| Power Supply Regulation | Voltage | <0.01%+3 mV | <0.01%+5 mV |
| Current | <0.1%+3 mA | <0.1%+5 mA | |
| Programming Accuracy | Voltage | <0.05%+10 mV | <0.05%+10 mV |
| Current | <0.2%+2 mA | <0.3%+5 mA | |
| Read-back Accuracy | Voltage | <0.05%+10 mV | <0.05%+10 mV |
| Current | <0.2%+2 mA | <0.3%+5 mA | |
| Ripple and Noise | Voltage | <2.0 mV rms | <5.0 mV rms |
| Current | <5.0 mA rms | <8.0 mA rms | |
| Dimension | 87 mm × 174 mm × 255 mm | 87 mm × 174 mm × 255 mm | |
| Weight | <2.5 kg | <2.5 kg | |
User Manual
Download UNI-T UDP6720 user manual.
Package Contents

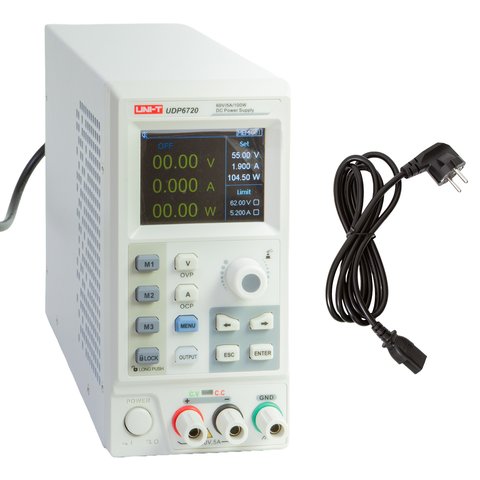

- DC Power Supply UNI-T UDP6720 — 1 pc.
- 3C Power Line — 1 pc.
- 250 V/3,15 A Spare Fuse — 1 pc.
