DC Power Supply UNI-T UTP3315TFL-II

id: 888681
4 kg Warranty: 24 month (s)
A single-channel power supply provides DC voltage power supply in a range of 0 to 30 V, and current in a range of 0 to 5 A.
Price coming soon
Contact
sales team
Price coming soon
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

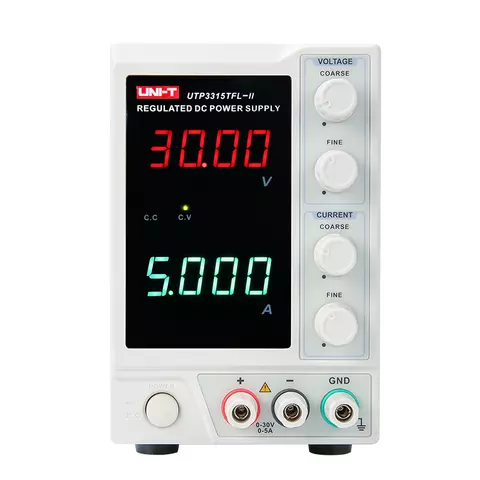

UNI-T UTP3315TFL-II is a single-channel transformer DC power supply with an LED display. UNI-T UTP3315TFL-II ensures the power supply of electronic devices and circuits with DC voltage in a range of 0 to 30 V and with the current in a range of 0 to 5 A.

Features

  • High-quality and stable device.
  • Data display: LED indicators.
  • Short-circuit protection, overload protection, reverse polarity protection etc.
  • Adjustability of the required current value.
  • Automatic conversion of voltage and current stabilization.

Technical Specifications

Output voltage 0-30 V
Output current 0-5 A
Output power 150 W
Load regulation CV: ≤0.01%+5 mV, CC: ≤0.1%+10 mA
Accuracy (25°C±5°C) Voltage: <0.5%+20 mV
Current: <0.5%+10 mA
Ripple and noise ≤2 mVrms
Output regulation resolution CV: 10 mV (typical), CC: 1 mA (typical)
Display LCD
Power input voltage: 110 V/220 V±5% AC; frequency: 50 Hz/60 Hz
Dimensions 105 mm × 165 mm × 249 mm
Weight 4 kg

User Manual

PDF  Download UNI-T UTP3315TFL-II user manual.

Package Contents

  • DC Power Supply UNI-T UTP3315TFL-II — 1 pc.
  • Power Cord — 1 pc.
  • Output Cables — 1 set
  • User Manual — 1 pc.
Specifications
Type
  • transformer
Number of channels
  • single-channel
Max. Voltage
  • up to 30 V
Max. Current
  • up to 5 A
Indicator type
  • LED indicators
