DC Power Supply UNI-T UTP3315TFL
id: 857395
DC Power Supply UNI-T UTP3315TFL
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
4.3 kg 110, 220 V Warranty: 24 months
Single channel regulated DC power supply with adjustable constant current (up to 5 A) and constant voltage (up to 30 V). Read more
Discontinued
Description

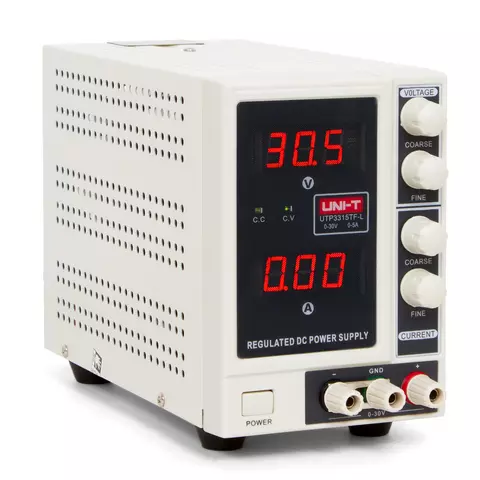

UNI-T UTP3315TFL is a single channel regulated DC power supply.
Features
- Current limitation
- Auto switching Voltage/Current
Technical Specifications
| UTP3313TFL | UTP3315TFL | |
|---|---|---|
| Output voltage | 0-30 V | 0-30 V |
| Output current | 0-3 A | 0-5 A |
| Overload effect | 1 × 10-4 + 2 mV | |
| Ripple and noise | ≤0.3 mVrms | |
| Indication method | LED display | |
| Power supply | 110 V / 220 V; 40-60 Hz | |
| Size (WxHxD) | 105 x 160 x 240 mm | |
| Weight | 2.8 kg | |
Package Contents
- UNI-T UTP3315TFL Power Supply Unit — 1 pc.
- Power cord — 1 pc.
- User manual — 1 pc.
Specifications
| Type |
|
| Number of channels |
|
| Max. Voltage |
|
| Max. Current |
|
| Indicator type |
|
