Overview
5 kg 220 V Warranty: 24 months
Triple channel DC power supply with adjustable constant current (up to 3 A) and constant voltage (up to 32 V). Read more
Discontinued
Description

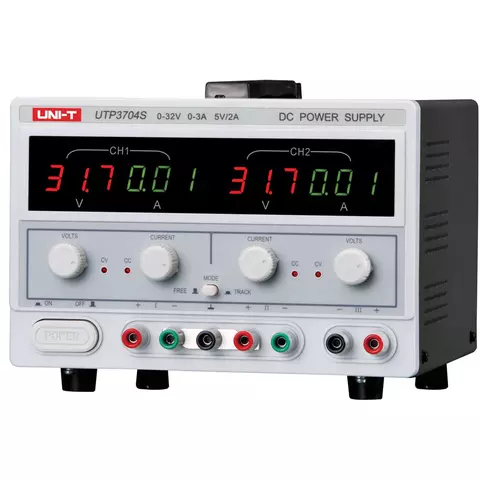

UNI-T UTP3704S is a triple channel DC power supply with adjustable constant-current and constant-voltage. UNI-T power supply unit with the LED display is safe, reliable and useful for laboratories, teaching, electronics production lines and communications industry.
Features
- Constant current and constant voltage power supply
- Triple output
- Parallel operation
- Current limitation
Technical Specifications
| Model | UTP3074 | UTP3075 | |
|---|---|---|---|
| Rated output voltage | Channel 1 | 0~32 V | |
| Channel 2 | |||
| Channel 3 | 5 V | – | |
| Rated output current | Channel 1 | 0~3 A | 0~5 A |
| Channel 2 | |||
| Channel 3 | 2 A | – | |
| Overload effect | DC voltage | ≤1 × 10-4 + 2 mV | |
| AC voltage | ≤2 mA | ||
| Ripple and noise | DC voltage | ≤1 mVrms | |
| AC voltage | ≤1 mArms | ||
| Regulation | DC voltage | 20 mV | |
| AC voltage | 50 mV | ||
| Tracking error | 5 × 10 - 3 + 2 mV | ||
| Reliability | MTBF (e): ≥ 2000 hours | ||
| Power | 220 V ± 10%, 50 Hz ± 4% | ||
| Dimensions, mm | 210 × 152 × 305 | ||
| Weight, kg | 4 | ||
Package
- DC Power Supply UNI-T UTP3704S (1 pc.)
- Test lead (1 pc.)
- Power cord (1 pc.)
- User manual (1 pc.)
Specifications
| Type |
|
| Number of channels |
|
| Max. Current |
|
| Indicator type |
|
| Max. Voltage |
|
