Desoldering Station AOYUE 474A++

id: 840054
Desoldering Station AOYUE 474A++
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 115.00
Notify
when in stock
Overview
Rate product
6.5 kg 220 V Warranty: 12 months
Powerful (70 W) ESD safe desoldering station with an efficient diaphragm pump and separate temperature regulation for easy desoldering work. Read more
USD 115.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 115.00
Notify
when in stock
Impossible to estimate the shipping cost

You may also like

Desoldering Station QUICK 201B ESD
Add to wishlist
ID: 838070
Desoldering Station QUICK 201B ESD
USD 251.25
Add to wishlist
Add to cart
Desoldering station with 90 W heating power, temperature range from 200°C to 450°C.
Availability in stock: HK
Shipping cost
ID: 838070 6 kg 220
Description

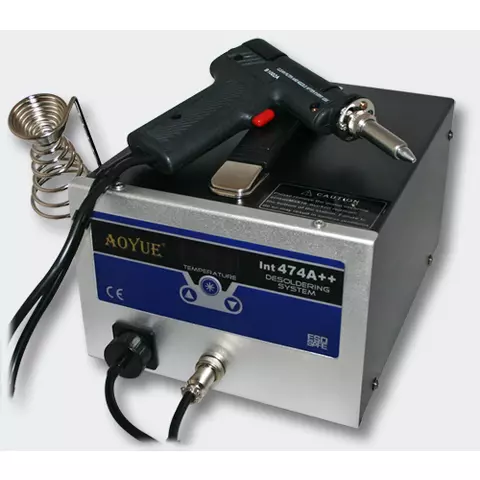

AOYUE 474A++ is a microprocessor-controlled ESD safe desoldering station with an efficient diaphragm pump and separate temperature regulation, perfectly suitable for workshops and laboratories.

AOYUE 474A++ Desoldering Station Features

  • ESD safe unit with membrane suction vacuum pump
  • Suited for multi-layered PCB reworking
  • User configurable 1 to 60 minute idle-to-auto-sleep mode
  • Digital calibration of the desoldering gun
  • Compatible with different desoldering tips

AOYUE 474A++ Desoldering Station Technical Specifications

Power input 220 V
Power consumption 70 W
Temperature range 200 to 480°C
Heating element ceramic heater
Output voltage 24 V
Tip to ground resistance under 2 Ohms
Suction flow 15 l/min (max)
Pump type 2-cylinder
Vacuum Pressure 600 mm Hg
Station Dimensions, W × H × D 188 × 126 × 250 mm

AOYUE 474A++ Desoldering Station Package Contents

  • Desoldering station unit (1 pc.)
  • Desoldering gun (1 pc.)
  • Desoldering gun tips (3 pcs.)
  • Filter pads (6 pcs.)
  • Silicone grease (1 pc.)
  • Desoldering gun holder (1 pc.)
  • Filter tip (1 pc.)
  • Nozzle cleaning pin (1 pc.)
  • Power cord (1 pc.)
Specifications
Design type
  • Desktop
Soldering Iron Power
  • No soldering iron
Gun power
  • 50 W
