An automotive digital multimeter for DC current, AC/DC voltage, resistance, frequency, temperature, tach and dwell measurements and continuity, diode tests.
Availability in stock:
HK
ID: 834625 0.65 kg

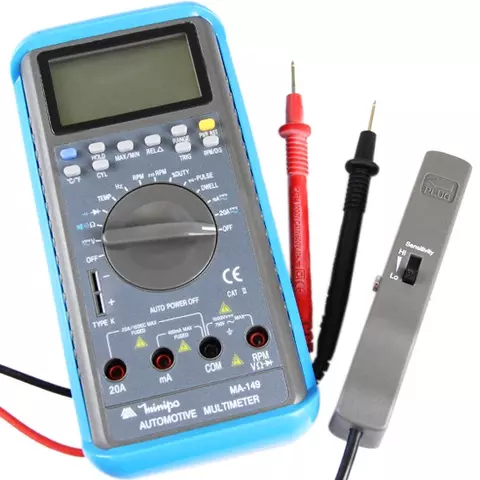

Digital Automotive Multimeter Minipa MA-149
id: 856828
Digital Automotive Multimeter Minipa MA-149
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 55.00
Overview
1 kg Warranty: 36 months
Automotive Multimeter for measuring AC/DC current, AC/DC voltage, resistance, frequency, capacitance, temperature, duty cycle, RPM, dwell, as well as diode and continuity test. Read more
USD 55.00
Buy wholesale and save
You may also like
Automotive digital multimeter for DC current, AC/DC voltage, resistance, tach and dwell measurements, continuity check and diode test.
Availability in stock:
HK
ID: 844699 1 kg
Description
Minipa MA-149 is a digital automotive multimeter for measuring AC & DC current, AC & DC voltage, resistance, frequency, capacitance, temperature, duty cycle, RPM, dwell, as well as diode and continuity test.
Features
- 3 ¾ digits LCD display
- Measuring and test functions:
- AC/DC voltage
- AC/DC current
- Resistance
- Frequency
- Capacitance
- Temperature
- Diode test
- Continuity test
- Duty Cycle
- RPM (Tach)
- Dwell
- Safety category: EN61010 (IEC-1010) CAT II
Technical Specifications
| Measurement Characteristics | |
|---|---|
| DC voltage | 4 V / 40 V / 400 V / 1000 V |
| AC voltage | 4 V / 40 V / 400 V / 750 V |
| DC current | 400 mA / 20 A |
| AC current | 400 mA / 20 A |
| Resistance | 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ |
| Frequency | 100 Hz / 1 kHz / 10 kHz / 100 kHz / 400 kHz |
| Capacitance | 4 nF / 40 nF / 400 nF /4 μF / 4 μF |
| Temperature | -50 ~ +1100ºC/ -58 ~ +2012ºF |
| General Characteristics | |
| Display | 3 ¾ digits LCD (4000 counts) |
| Power | 1 × 9 V battery (IEC6LF22 or NEDA 1604) |
| Size | 189 × 87 × 37 mm |
| Weight | 385 g (multimeter) / 495 g (with holster) |
Package Contents
- Minipa MA-149 Digital Automotive Multimeter – 1 pc.
- Measuring probes – 1 pair
- K-type thermocouple – 1 pc.
- Battery – 1 pc.
- Instruction manual – 1 pc.
- Holster – 1 pc.
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Continuity test |
|
| Capacitance |
|
| Frequency |
|
| NCV |
|
| Battery Testing |
|
