Digital Automotive Multimeter UNI-T UT109

id: 830010
Digital Automotive Multimeter UNI-T UT109
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
0.75 kg Warranty: 24 months
Digital automotive multimeter which measures AC/DC voltage, AC/DC current, resistance, frequency, capacitance, temperature, tach, dwell and can be used for diode and continuity test.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT61B+
Add to wishlist
Digital Multimeter UNI-T UT61B+
USD 42.60
Add to wishlist
Add to cart
True RMS multimeter used to measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, duty cycle, and also to test diode and continuity.
Availability in stock: HK
Shipping cost
ID: 898457 0.8 kg
Automotive digital multimeter for DC current, AC/DC voltage, resistance, tach and dwell measurements, continuity check and diode test.
Bestseller
Availability in stock: HK
Shipping cost
ID: 844699 1 kg
An automotive digital multimeter for DC current, AC/DC voltage, resistance, frequency, temperature, tach and dwell measurements and continuity, diode tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 834625 0.65 kg
Description

This UNI-T UT109 digital automotive multimeter is designed for measuring AC/DC current, AC/DC voltage, resistance, capacitance, frequency, temperature and can be used for continuity and diode tests.

Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy Uni-T UT-T03 Temperature Probe.

Features

  • Measurement functions:
    • AC/DC voltage
    • AC/DC current
    • resistance
    • capacitance
    • frequency
    • temperature
    • diode test
    • continuity test
    • Tach
    • Dwell
  • Auto ranging
  • Data hold
  • Low battery indication
  • Sleep Mode
Read more
Description

This UNI-T UT109 digital automotive multimeter is designed for measuring AC/DC current, AC/DC voltage, resistance, capacitance, frequency, temperature and can be used for continuity and diode tests.

Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy Uni-T UT-T03 Temperature Probe.

Features

  • Measurement functions:
    • AC/DC voltage
    • AC/DC current
    • resistance
    • capacitance
    • frequency
    • temperature
    • diode test
    • continuity test
    • Tach
    • Dwell
  • Auto ranging
  • Data hold
  • Low battery indication
  • Sleep Mode

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Display 3999 digit LCD, backlight, 65 × 43 mm
DC voltage Range 4 V / 40 V / 400 V / 1000 V
Accuracy ±(0.5%+3)
AC voltage Range 40 mV / 400 mV / 4 V / 40 V / 400 V / 1000 V
Accuracy ±(0.8%+3)
DC current Range 400 μA / 4000 μA / 40 mA / 400 mA / 4 A / 10 A
Accuracy ±(1%+2)
AC current Range 400 μA / 4000 μA / 40 mA / 400 mA / 4 A / 10 A
Accuracy ±(1.2%+5)
Resistance Range 400 Ω / 4 kΩ/ 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Accuracy ±(1%+5)
Capacitance Range 10 nF / 100 nF / 1000 nF / 10 μF / 100 μF
Accuracy ±(3%+ 5)
Frequency Range 10 Hz - 1 MHz
Accuracy ±(0.1%+ 4)
Temperature Range -40 °C ~ 537 °C
Accuracy ±(1%+ 10)
Dwell Range 4Cyl / 6Cyl / 8Cyl
Accuracy ±(3%+5)
Tach Range 4Cyl / 6Cyl / 8Cyl
Accuracy ±(3%+5)
Power 9 V battery (6F22)
Dimensions 180 × 87 × 47 mm
Weight 0.362 kg

User Manual

PDF  Download UNI-T UT109 User Manual.

Sofware

Download UNI-T UT109 Sofware.

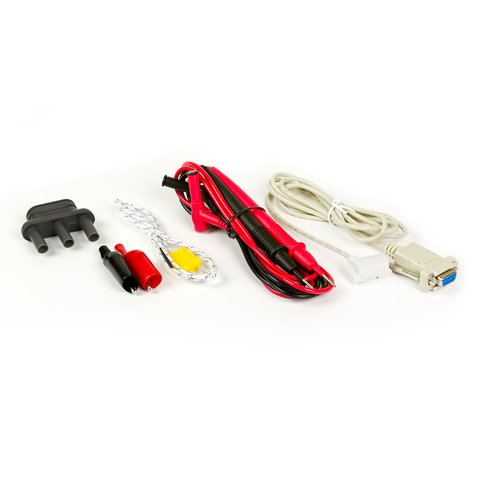

Package Contents

  • Multimeter UNI-T UT109 (1 pc.)
  • Test lead (1 pc.)
  • Multi-purpose socket (1 pc.)
  • Point contact temperature probe (1 pc.)
  • RS232 interface cable (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Optional Accessories

Specifications
Type
  • digital
  • automotive
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • temperature
  • crankshaft rotation frequency
  • crankshaft speed
Additional Functions
  • acoustic continuity test
  • data hold
  • connection to PC (RS232)
  • automatic shutdown/sleep mode
  • max / min
  • diode test
  • backlight
Range Selection
  • auto range
Digit Capacity
  • 3999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 1000 V
Resistance
  • up to 40 MOhm
Capacitance
  • up to 100 μF
Frequency
  • up to 1 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • yes
PC connection
  • RS232
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • no
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
