Digital Bench Multimeter UNI-T UT801
id: 828540

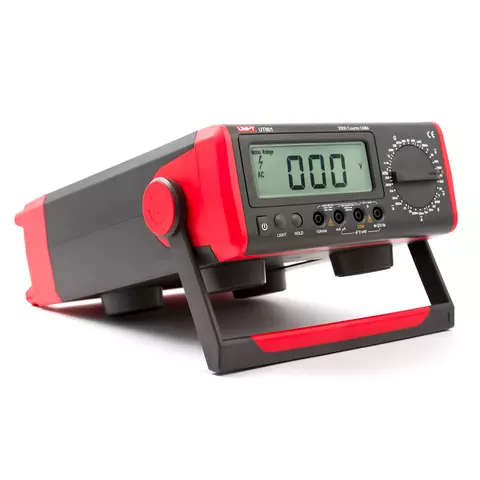

Digital Bench Multimeter UNI-T UT801
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 75.90
Overview
Video
Video
5.5 kg Warranty: 24 months
A digital bench multimeter for AC/DC current to 10 A and voltage to 1000 V, resistance, capacitance, frequency, temperature measurements and diode, continuity tests. Read more
USD 75.90
Buy wholesale and save
Frequently bought together
Description
This UNI-T UT801 digital bench multimeter measures AC/DC current and voltage, resistance, capacitance, frequency, temperature and tests diodes and continuity.
Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy Uni-T UT-T03 Temperature Probe.
User Manuals
Download UNI-T UT801 Digital bench multimeter user manual
Features
- Functions:
- AC/DC current and voltage
- resistance
- capacitance
- frequency
- temperature (ºC)
- continuity test (with buzzer)
- diode test
- Manual ranging
- Data Hold function
- Max/Min measurements
- Relative display mode
- Sleep mode
- Low battery indication
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Display | LCD with backlight, 108 × 35 mm | |
| DC voltage | Range | 200 mV / 2 V / 20 V / 200 V / 1000 V |
| Accuracy | ±(0.5%+5) | |
| AC voltage | Range | 2 V / 20 V / 200 V / 1000 V |
| Accuracy | ±(0.8%+3) | |
| DC current | Range | 200 µA / 2 mA / 20 mA / 200 mA / 10 A |
| Accuracy | ±(0.8%+2) | |
| AC current | Range | 2 mA / 20 mA / 200 mA / 10 A |
| Accuracy | ±(1%+3) | |
| Resistance | Range | 200 Ω / 42 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ |
| Accuracy | ±(0.8%+3) | |
| Capacitance | Range | 20 nF / 2 µF / 200 µF |
| Accuracy | ±(4%+3) | |
| Frequency | Range | 2 kHz / 200 kHz |
| Accuracy | ±(1.5%+5) | |
| Temperature, ºC | Range | -40~1000 |
| Accuracy | ±(1.2%+3) | |
| Power | 6 × 1.5 V battery (R14) AC 200 V ~240 V 50 Hz |
|
| Dimensions (H × W × D), mm | 300 × 245 × 105 | |
| Weight, kg | 1.5 | |
Package Contents
- Digital multimeter UNI-T UT801
- Test lead
- Point contact temperature probe
- Multi-purpose socket
- Power cord
- User manual
