Digital Bluetooth Multimeter OWON B33+
id: 888006
Digital Bluetooth Multimeter OWON B33+
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Price coming soon
Overview
Video
Video
Video
0.5 kg Warranty: 12 months
Bluetooth multimeter measures AC/DC voltage, AC/DC current, resistance, capacitance, temperature, frequency, and also performs diode and continuity testing. Read more
Price coming soon
Frequently bought together
Description
OWON B33+ is a professional digital multimeter used to measure AC/DC voltage, AC/DC current, resistance, capacitance, temperature, frequency, and also to perform diode and continuity testing.
The multimeter equipped with a Bluetooth module for measuring results transmission to Android 4.3 and iOS 7.0 mobile devices (result recording is possible without a connection to an Android or iOS device). The installed software enables graphs and diagrams creation, its comparison and analysis.

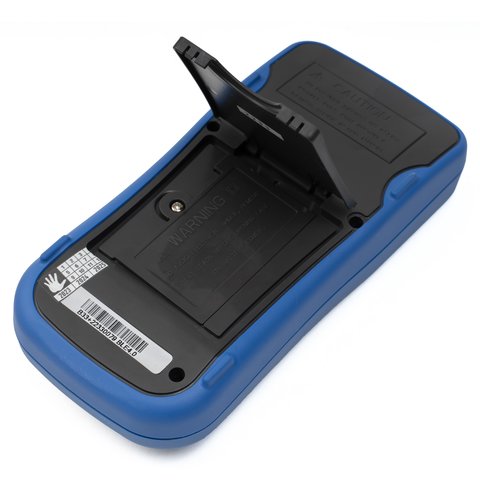

The device is powered by two 1.5 V AA batteries.
Features
- Function as 3 in 1: the multimeter performs datalogger and a thermometer functions.
- Result recording is possible without a connection to an Android or iOS device.
- The software supports multi-connection (more than one device).
- Special chart mode provides the change trend analysis.
- The voice warning function is supported for measurement safety.
- The voice reproduction of measurement results is available.
- The 3(3/4)-digit display.
- Large display, easy data reading; an imaged histogram as an additional option.
- Bright backlight for user-friendliness under insufficient lighting.
- Smart power-off option to save battery power.
- Wireless Bluetooth measurement transmission interface.
- True RMS value available.
- Quick scale measurement.
- Offline recording function.
- Relative measurements.
- The measurements result export in CSV is available.
- You need to install TTS To activate the voice reproduction function. This allows receiving the information about measurement results while being at a distance from the multimeter and the object of measurement.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 40,00 mV / 600,0 mV | ±(0,5%+2) |
| 1000 V | ||
| AC Voltage (from 40 Hz to 400 Hz) | 40,00 mV / 40,00 V | ±(0,8%+2) |
| 400,0 V / 750 V | ||
| ±(1,0%+3) | ||
| DC Current | 400,0 μA / 400 mA | ±(0,8%+2) |
| 1,000 A / 10,00 A | ||
| ±(1,2%+3) | ||
| AC Current (from 40 Hz to 400 Hz) | 400,0 μA / 4000,0 μA | ±(1,0%+3) |
| 40,00 mA / 400,0 mA | ±(0,8%+2) | |
| 20,00 A | ±(2,0%+3) | |
| Resistance | 400,0 Ω / 4,00 MΩ | ±(0,8%+2) |
| 40,00 MΩ | ||
| ±(2,0%+3) | ||
| Capacitance | 40,00 nF / 40,00 μF | ±(2,5%+3) |
| 100,0 μF | ±(3,0%+5) | |
| Frequency | 4,999 Hz / 49,99 Hz / 499,9 Hz / 4,999 kHz / 49,99 kHz / 499,9 kHz / 4,999 MHz | ±(0,8%+2) |
| Duty Ratio | 0,1% - 99,9%: f=1 kHz, V=1 V | ±(1,2%+3) |
| 0,1% - 99,9%: f>1 kHz | ±(2,5%+3) | |
| Temperature | -50 °C to 400 °C | ±(2,5%+3) | General Specifications |
| Power | 3 V (1,5 V × 2 pcs.) AA type, alkaline | |
| Display | 69 × 52 mm | |
| Dimensions | 85 × 185 × 30 mm | |
| Weight | 320 g | |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
User Manual
Download OWON B33+ user manual.
Software
Download OWON B33+ Software (Bluetooth 4.0) for Android OS.
Download multi-language voice pack for OWON B33+.

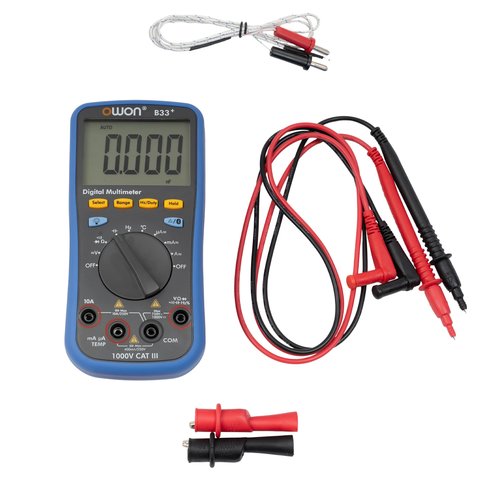

Package Contents
- Digital Bluetooth Multimeter OWON B33+ — 1 pc.

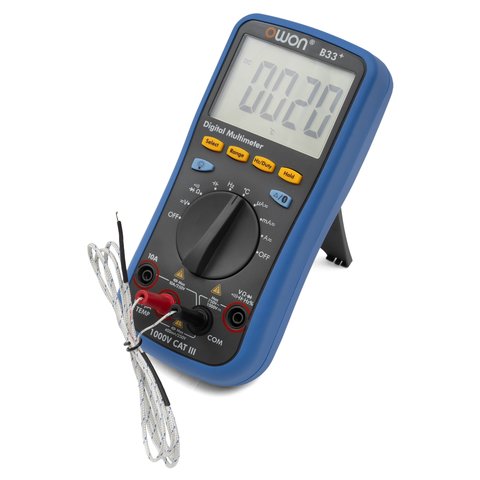

- K-type Temperature Probe — 1 pc.
- User Manual — 1 pc.
- Alligator Clips — 1 set (optional)
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Continuity test |
|
| Capacitance |
|
| PC connection |
|
| Frequency |
|
| NCV |
|
| Battery Testing |
|
