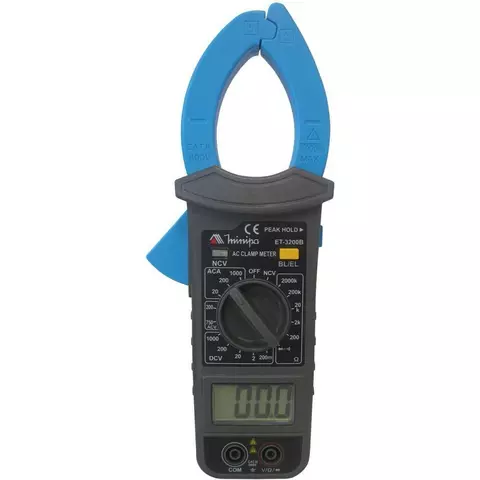

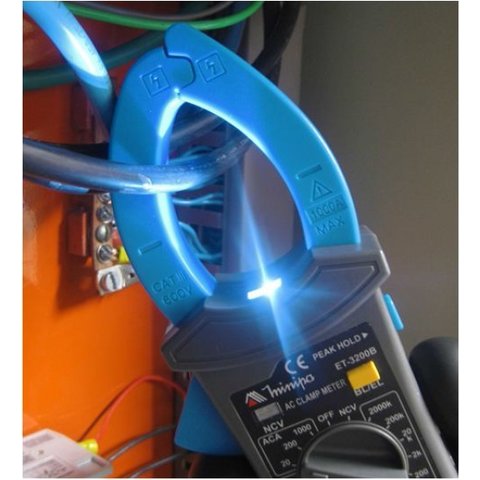

Digital Clamp Meter Minipa ET-3200B

id: 856822
1 kg Warranty: 36 month (s)
Clamp meter for measuring AC current, peak AC current, AC/DC voltage and resistance, conducting diode and continuity tests, NCV detection. LCD display. Max. conductor diameter: 40 mm.
USD 25.00
Notify
when in stock
USD 25.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

Minipa ET-3200B is a digital clamp meter for measuring AC current, AC/DC voltage and resistance, as well as conducting diode and continuity tests, non-contact voltage detection.

Features

  • 3 ½ digit LCD display
  • Manual range
  • Measuring and test functions:
    • AC current
    • Peak AC current
    • AC/DC voltage
    • resistance
    • diode
    • continuity
    • non-contact voltage detection (NCV)

User Manual

Download Minipa ET-3200B Analog Clamp Meter User Manual (Português).

Technical Specifications

Function Range Resolution Accuracy
AC Current 20 A 10 mA ±(3%+8D)
200 A 100 mA
1000 A 1 A
AC Current (Peak Hold) 20 A 10 mA ±(6.0%+9D)
200 A 100 mA ±(4.0%+9D)
1000 A 1 A < 800A ±(4.0%+9D)
> 800A ±(6.0%+9D)
AC Voltage 200 V 100 mV ±(1.5%+5D)
750 V 1 V
DC Voltage 200 mV 0.1 mV ±(0.8%+5D)
2 V 1 mV
20 V 10 mV
200 V 100 mV
1000 V 1 V
Resistance 200 Ω 0.1 Ω ±(1.5%+5D)
2 kΩ 1 Ω ±(1.5%+3D)
20 kΩ 10 Ω
200 kΩ 100 Ω
2 MΩ 1 kΩ ±(2%+5D)
20 MΩ 10 kΩ ±(3%+5D)
General Characteristics
Jaw Size 40 mm
Display 3 ½ digit LCD, max. ±1999
Power 1 x 9 V battery (NEDA 1604 or 6F22 or 006P)
Operation Environment 0°C to 40°C, relative humidity < 70% max.
Size 250 × 95 × 45 mm
Weight 345 g (with battery)

Video

Youtube video

Package Contents

  1. Minipa ET-3200B Digital Clamp Meter – 1 pc.
  2. Test leads – 1 pair
  3. Battery – 1 pc.
  4. Instruction manual – 1 pc.
  5. Carrying case – 1 pc.
Specifications
Digit Capacity
  • 1999
Type
  • for AC
Jaw diameter
  • diameter 40 mm
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 20 MOhm
Capacitance
  • does not measure the capacitance
DC
  • does not measure the DC
Frequency
  • does not measure the frequency
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Continuity test
  • yes
AC
  • up to 1000 A
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
NCV
  • yes
Video
Youtube video
