Digital Clamp Meter Minipa ET-3320

id: 856823
Digital Clamp Meter Minipa ET-3320
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 29.00
Notify
when in stock
Overview
0.7 kg Warranty: 36 months
Clamp meter for measuring AC current & DC current. LCD display. Max. conductor diameter: 21 mm.
USD 29.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 29.00
Notify
when in stock
Impossible to estimate the shipping cost
Description

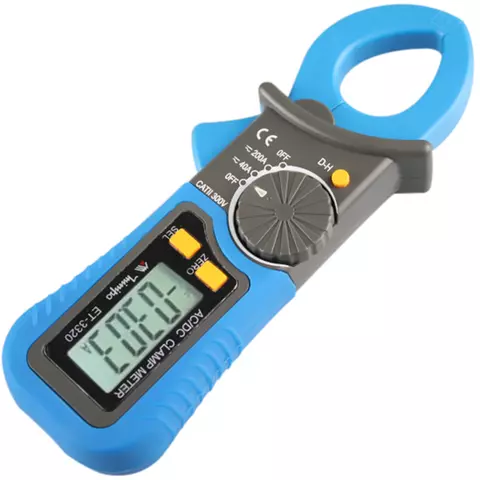

Minipa ET-3320 is a digital clamp meter for measuring AC current & DC current.

Features

  • 3 ¾ digits LCD display
  • Manual Range Selection
  • Auto Polarity
  • Sampling Rate: 3 times per second nominal
  • Measuring and test functions:
    • AC current
    • DC current
  • Safety: IEC61010-1 Measurement Category II 300V
  • Low battery indication

User Manual

Download Minipa ET-3320 Analog Clamp Meter User Manual (English / Español / Português).

Technical Specifications

Measurement Characteristics
Function Range Resolution Accuracy
AC Current 40 A 0.01 A ±(2.5%+8D)
200 A 0.1 A
DC Current 40 A 0.01 A ±(3.0%+5D)
200 A 0.1 A
General Characteristics
Jaw Opening / Conductor Diameter 21 mm
Overload Protection 200 A RMS
Display 3 ¾ digits LCD (4000 counts)
Power 2 × 1.5 V batteries (LR44)
Operation Environment 0°C to 40°C, relative humidity < 75%
Size 155 × 50 × 25 mm
Weight 95 g (with battery)

Video

Youtube video

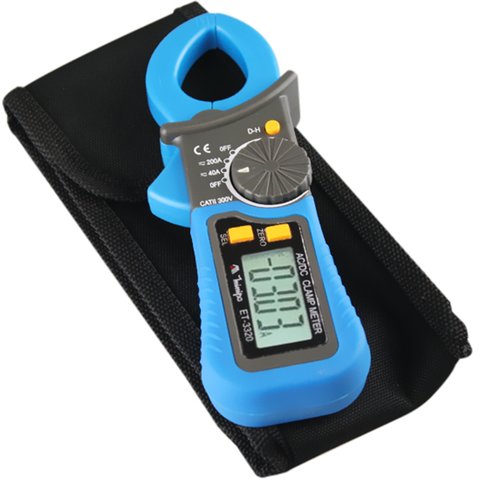

Package Contents

  1. Minipa ET-3320 Digital Clamp Meter – 1 pc.
  2. Batteries – 2 pcs.
  3. Instruction manual – 1 pc.
  4. Protective holster – 1 pc.
  5. Carrying case – 1 pc.
Read more
Description

Minipa ET-3320 is a digital clamp meter for measuring AC current & DC current.

Features

  • 3 ¾ digits LCD display
  • Manual Range Selection
  • Auto Polarity
  • Sampling Rate: 3 times per second nominal
  • Measuring and test functions:
    • AC current
    • DC current
  • Safety: IEC61010-1 Measurement Category II 300V
  • Low battery indication

User Manual

Download Minipa ET-3320 Analog Clamp Meter User Manual (English / Español / Português).

Technical Specifications

Measurement Characteristics
Function Range Resolution Accuracy
AC Current 40 A 0.01 A ±(2.5%+8D)
200 A 0.1 A
DC Current 40 A 0.01 A ±(3.0%+5D)
200 A 0.1 A
General Characteristics
Jaw Opening / Conductor Diameter 21 mm
Overload Protection 200 A RMS
Display 3 ¾ digits LCD (4000 counts)
Power 2 × 1.5 V batteries (LR44)
Operation Environment 0°C to 40°C, relative humidity < 75%
Size 155 × 50 × 25 mm
Weight 95 g (with battery)

Video

Youtube video

Package Contents

  1. Minipa ET-3320 Digital Clamp Meter – 1 pc.
  2. Batteries – 2 pcs.
  3. Instruction manual – 1 pc.
  4. Protective holster – 1 pc.
  5. Carrying case – 1 pc.
Specifications
Digit Capacity
  • 3999
Type
  • for AC/DC
Capacitance
  • does not measure the capacitance
Frequency
  • does not measure the frequency
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • no
Analog bar graph
  • no
AC Voltage
  • does no measure the AC voltage
DC Voltage
  • does not measure the DC voltage
Continuity test
  • no
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
Resistance
  • doesn't measure resistance
AC
  • up to 200 A
DC
  • up to 200 A
Jaw diameter
  • Diameter 21 mm
NCV
  • no
