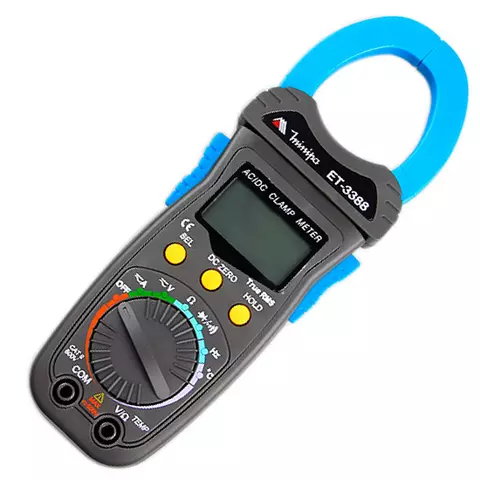

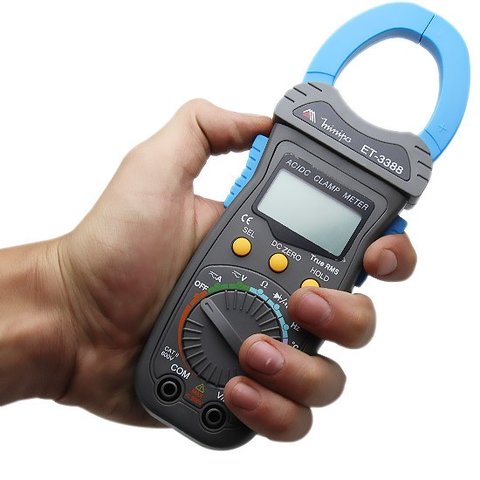

Digital Clamp Meter Minipa ET-3388

id: 856824
1 kg Warranty: 36 month (s)
Clamp meter for measuring AC/DC current, AC/DC voltage, resistance, frequency, temperature, diode and continuity test. LCD display. Max. conductor diameter: 40 mm.
USD 39.00
Notify
when in stock
USD 39.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Video
Delivery
Payment
Warranty
Overview

Minipa ET-3388 is a digital clamp meter for measuring AC & DC current, AC & DC voltage, resistance, frequency, temperature, as well as diode and continuity test.

Features

  • 3 ¾ digits LCD display
  • Data hold
  • Auto range
  • Measuring and test functions:
    • AC/DC voltage
    • AC/DC current
    • Resistance
    • Temperature
    • Frequency
    • Diode test
    • Continuity test
  • Safety category: CAT II 600V

Technical Specifications

Measurement Characteristics
DC voltage 400 mV / 4 V / 40 V / 400 V
AC voltage 4 V / 40 V / 400 V
DC current 400 A / 1000 A
AC current 400 A / 1000 A
Resistance 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ
Temperature -20~+750ºC
Frequency 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz
General Characteristics
Jaw Opening / Conductor Diameter 40 mm
Display 3 ¾ digits LCD (4000 counts)
Power 2 × 3 V batteries (CR2032)
Size 190 × 69 × 23 mm
Weight 180 g

Video

Youtube video

Package Contents

  1. Minipa ET-3388 Digital Clamp Meter – 1 pc.
  2. Measuring probes – 1 pair
  3. K-type thermocouple – 1 pc.
  4. Batteries – 2 pcs.
  5. Instruction manual – 1 pc.
  6. Protective holster – 1 pc.
  7. Carrying case – 1 pc.
Specifications
Digit Capacity
  • 3999
Type
  • for AC/DC
Jaw diameter
  • diameter 40 mm
Frequency
  • up to 1 MHz
Capacitance
  • does not measure the capacitance
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • yes
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Continuity test
  • yes
DC
  • up to 1000 A
AC
  • up to 1000 A
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
Resistance
  • up to 4 MΩ
DC Voltage
  • up to 400 V
AC Voltage
  • up to 400 V
NCV
  • no
Video
Youtube video
