Overview
1 kg Warranty: 12 months
True RMS clamp meter for measuring AC/DC current, AC/DC voltage, resistance, frequency, diode and continuity test. LCD display. Max. conductor diameter: 57 mm.
USD 44.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 44.00
Notify
when in stock
Impossible to estimate the shipping cost

You may also like

Digital Clamp Meter UNI T UT220
Bestseller
Add to wishlist
Digital Clamp Meter UNI-T UT220
USD 65.27
Add to wishlist
Add to cart
The reliable digital clamp meter for measuring AC current, AC/DC voltage, resistance and performing diode check and continuity test.
Bestseller
Availability in stock: HK
Shipping cost
ID: 844703 1 kg
Digital Clamp Meter UNI T UT221
Bestseller
Add to wishlist
Digital Clamp Meter UNI-T UT221
USD 149.62
Add to wishlist
Add to cart
The reliable True RMS digital clamp meter for measuring AC/DC current, AC/DC voltage, resistance, frequency and performing diode check and continuity test.
Bestseller
Availability in stock: HK
Shipping cost
ID: 844704 1 kg
Description

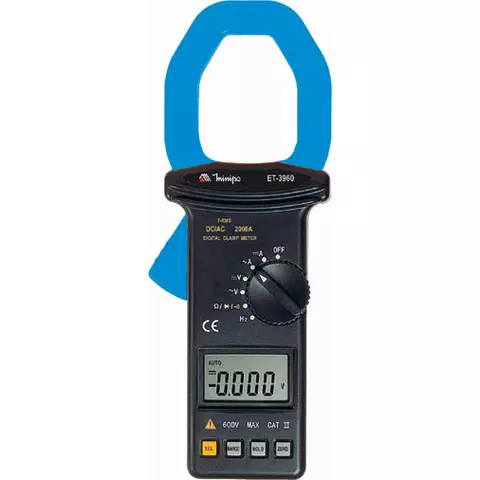

Minipa ET-3960 is a digital clamp meter for measuring AC & DC current, AC & DC voltage, resistance, frequency, temperature, as well as diode and continuity test.

Features

  • 3 ¾ digits LCD display
  • True RMS AC
  • Data hold
  • Manual and Auto range
  • Measuring and test functions:
    • AC/DC voltage
    • AC/DC current
    • Resistance
    • Frequency
    • Diode test
    • Continuity test
  • Auto Power Off
  • Safety category: IEC1010-1 CAT II 600V

Technical Specifications

Measurement Characteristics
DC voltage 4 V / 40 V / 400 V / 1000 V
AC voltage (True RMS) 4 V / 40 V / 400 V / 750 V
DC current 400 A / 2000 A
AC current (True RMS) 400 A / 2000 A
Resistance 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Frequency 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz
General Characteristics
Jaw Opening / Conductor Diameter 57 mm
Display 3 ¾ digits LCD (4000 counts)
Power 1 × 9 V battery (IEC6LF22 or NEDA 1604)
Size 240 × 100 × 50 mm
Weight 610 g (with battery)

Video

Youtube video

Package Contents

  1. Minipa ET-3960 Digital Clamp Meter – 1 pc.
  2. Measuring probes – 1 pair
  3. Batteries – 2 pcs.
  4. Instruction manual – 1 pc.
  5. Carrying case – 1 pc.
Read more
Description

Minipa ET-3960 is a digital clamp meter for measuring AC & DC current, AC & DC voltage, resistance, frequency, temperature, as well as diode and continuity test.

Features

  • 3 ¾ digits LCD display
  • True RMS AC
  • Data hold
  • Manual and Auto range
  • Measuring and test functions:
    • AC/DC voltage
    • AC/DC current
    • Resistance
    • Frequency
    • Diode test
    • Continuity test
  • Auto Power Off
  • Safety category: IEC1010-1 CAT II 600V

Technical Specifications

Measurement Characteristics
DC voltage 4 V / 40 V / 400 V / 1000 V
AC voltage (True RMS) 4 V / 40 V / 400 V / 750 V
DC current 400 A / 2000 A
AC current (True RMS) 400 A / 2000 A
Resistance 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Frequency 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz
General Characteristics
Jaw Opening / Conductor Diameter 57 mm
Display 3 ¾ digits LCD (4000 counts)
Power 1 × 9 V battery (IEC6LF22 or NEDA 1604)
Size 240 × 100 × 50 mm
Weight 610 g (with battery)

Video

Youtube video

Package Contents

  1. Minipa ET-3960 Digital Clamp Meter – 1 pc.
  2. Measuring probes – 1 pair
  3. Batteries – 2 pcs.
  4. Instruction manual – 1 pc.
  5. Carrying case – 1 pc.
Specifications
Digit Capacity
  • 3999
Type
  • for AC/DC
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 40 MOhm
Frequency
  • up to 1 MHz
Capacitance
  • does not measure the capacitance
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • yes
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Continuity test
  • yes
DC
  • up to 2000 A
AC
  • up to 2000 A
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
Jaw diameter
  • Diameter 57 mm
NCV
  • no
