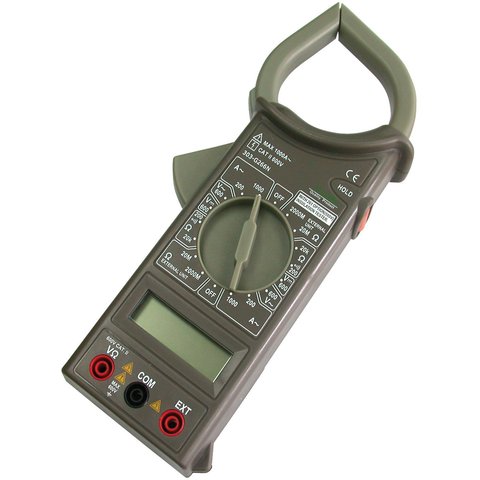

Digital Clamp Meter Pro'sKit 303-G266N

id: 10949
0.7 kg Warranty: 6 month (s)
Measures current, voltage and resistance by holding the isolated wire in the clamp.  3 1/2 digits LCD display with 1999-counts.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Video
Delivery
Payment
Warranty
Overview

Pro'sKit 303-G266N - hand held digital clamp meter allows to measure current, voltage and resistance by holding the isolated wire in the clamp.  3 1/2 digits LCD display with 1999-counts.

Features

Alternating current
Range 20 A / 200 A / 1000 A
Accuracy ± 4%, ±2.5%, ±3.00%
AC response Averaging
Alternating voltage
Range 200 V, 600 V
Accuracy ±1.0%, ±1.20%
AC response Averaging
Direct voltage
Range 200 mV, 2/20/200/600 V
Accuracy ±0.5%, 0.80%
Resistance
Range 200/2K/200K/20MΩ
Accuracy ±1.0%
Continuity test Built in buzzer
Display size: 15x47 mm, 3 1/2 LCD, counts 1999
Display hold Available
Power 6F22 (9 V) x1
Max. cable diameter 60 mm
Size (H x W x D) 235 x 96 x 46 mm
Individual packing Color box

Video

Youtube video
Specifications
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • resistance
  • temperature
Additional Functions
  • acoustic continuity test
  • data hold
  • diode test
Range Selection
  • manual range
Digit Capacity
  • 1999
Type
  • for AC
Jaw diameter
  • diameter 54 mm
DC Voltage
  • up to 600 V
AC Voltage
  • up to 600 V
Resistance
  • up to 20 MOhm
Capacitance
  • does not measure the capacitance
DC
  • does not measure the DC
Frequency
  • does not measure the frequency
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • no
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
AC
  • up to 1000 A
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
