Clamp meter used to measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, and to perform diode and continuity testing. Jaw opening: 55 mm.
Availability in stock:
HK
ID: 891580 0.9 kg

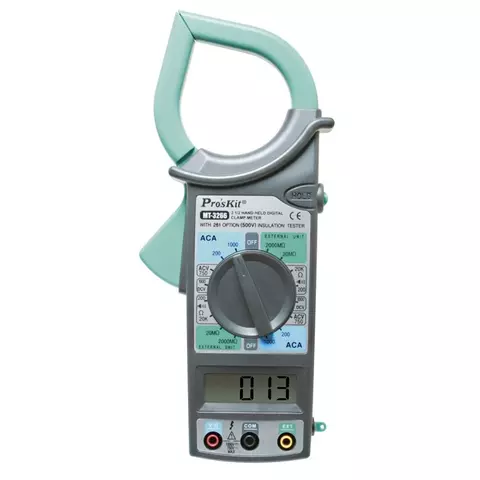

Digital Clamp Meter Pro'sKit MT-3266
id: 861894
Digital Clamp Meter Pro'sKit MT-3266
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Overview
1 kg Warranty: 6 months
The reliable digital clamp meter for measuring AC current, AC/DC voltage, resistance and performing diode check and continuity test. Read more
Price coming soon
You may also like
Description
Pro'sKit MT-3266 is reliable digital clamp meter that is designed for measuring AC current, AC/DC voltage, resistance and performing diode check and continuity test.
Features
- Functions:
- AC/DC voltage
- AC current
- resistance
- continuity test
- diode test
- Data hold
- Low battery display.
Technical Specifications
| AC current | Range | 200 A / 1000 A |
| Accuracy | ±(3.0%+5) | |
| AC voltage | Range | 750 V |
| Accuracy | ±(1.2%+4 | |
| DC voltage | Range | 1000 V |
| Accuracy | ±(0.8%+2) | |
| Resistance | Range | 200 Ω / 20 kΩ |
| Power | 9 V battery (NEDA1604/6F22 ) | |
| Dimensions (H × W × D) | 230 × 70 × 37 mm | |
Video
Package Contents
- Pro'sKit MT-3266 clamp meter (1 pc.)
- Test leads (1 pair)
- Carrying case (1 pc.)
- User manual (1 pc.)
Note! Batteries are not included in the package.
Specifications
| Digit Capacity |
|
| Type |
|
| DC Voltage |
|
| AC Voltage |
|
| Capacitance |
|
| DC |
|
| Frequency |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Continuity test |
|
| AC |
|
| Three-phase voltage measurement |
|
| Three-phase current measurement |
|
| Resistance |
|
| Jaw diameter |
|
| NCV |
|
