Digital Clamp Meter UNI-T UT213C

id: 864110
0.5 kg
Availability in stock: HK
Warranty: 24 month (s)
Digital clamp meter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency and temperature, performing NCV test.
USD 67.18
Add to cart
USD 67.18
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Note! This item is shipped within 7 working days.
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

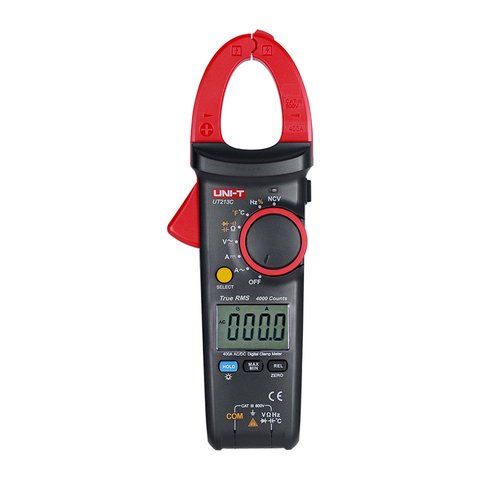

UNI-T UT213C – reliable digital True RMS clamp meter designed for measuring AC and DC voltage, AC and DC current, resistance, capacitance, frequency and temperature, and also performing NCV test.

Features

  • Display Count 4000
  • Auto Range
  • Jaw Capacity 30 mm
  • True RMS
  • Measuring functions:
    • AC/DC voltage
    • AC/DC current
    • Resistance
    • Capacitance
    • Frequency
    • Temperature
    • Diode test
    • NCV
  • Data hold
  • Relative Mode
  • MAX/MIN Mode
  • Display Backlight
  • LED flashlight
  • Auto Power Off
  • Continuity Buzzer
  • Low Battery Indication
  • Input Protection
  • Input Impedance DC ≥ 10 MΩ

Technical Specifications

AC Current  40 A / 400 A ± (2.5% + 5)
DC Current 40 A / 400 A ± (2.0% + 3)
AC Voltage 4 V / 40 V / 400 V / 600 V ± (1.2% + 5)
DC Voltage 400 mV / 4 V / 40 V / 400 V / 600 V ± (0.8% + 1)
Resistance  400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ ± (1.0% + 2)
Capacitance  40 nF /400 nF / 4 μF / 40 μF / 400 μF / 4 mF / 40 mF ± (4.0% + 5)
Frequency  10 Hz - 1 MHz ± (0.1% + 4)
Temperature  -40 ° C ~ 1000 ° C ± (1.0% + 3)
General Characteristics
Display LCD, 38 mm × 24 mm
Power  AAA battery 1.5 V × 3
Size  220 × 75 × 40 mm
Weight  231.7 g

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Package Contents

  • UNI-T UT213C Digital Clamp Meter — 1 pc.
  • Test Leads — 2 pcs.
  • Temperature Probe — 1 pc.
  • Pouch — 1 pc.
  • English user manual — 1 pc.

Note! Batteries are not included in the package.
