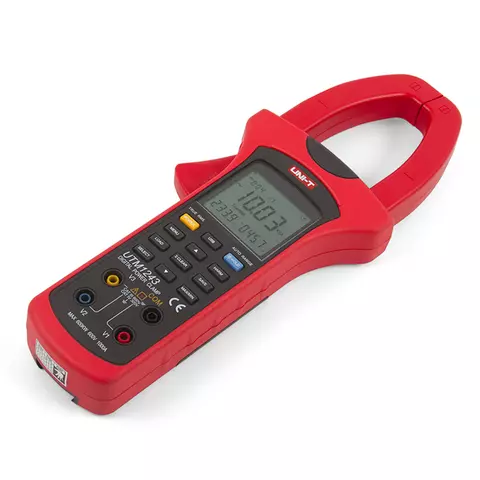

Digital Clamp Meter UNI-T UT243

id: 834636
Digital Clamp Meter UNI-T UT243
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 414.70
Notify
when in stock
Overview
4.5 kg Warranty: 24 months
The reliable True RMS digital clamp meter measures AC voltage and current, active power, apparent power, reactive power, power factor, phase angle, frequency and active energy.
USD 414.70
Notify
when in stock
Add to wishlist
Compare
Compare
USD 414.70
Notify
when in stock
Impossible to estimate the shipping cost
Description

UNI-T UT243 is reliable True RMS digital clamp meter that is designed for measuring AC voltage and current, active power, apparent power, reactive power, power factor, phase angle, frequency and active energy.

Features

  • Measuring functions:
    • AC current
    • AC voltage
    • active power
    • apparent power
    • reactive power
    • cos φ
    • phase angle
    • frequency
    • active energy
  • Auto ranging
  • Data Hold function
  • Low battery indication

Technical Specifications

Read more
Description

UNI-T UT243 is reliable True RMS digital clamp meter that is designed for measuring AC voltage and current, active power, apparent power, reactive power, power factor, phase angle, frequency and active energy.

Features

  • Measuring functions:
    • AC current
    • AC voltage
    • active power
    • apparent power
    • reactive power
    • cos φ
    • phase angle
    • frequency
    • active energy
  • Auto ranging
  • Data Hold function
  • Low battery indication

Technical Specifications

Display 9999 digit LCD, 46 × 42 mm
AC voltage Range 150 V / 300 V / 600 V
Accuracy ±(1.2%+5)
AC current Range 5 A / 250 A / 1000 A
Accuracy ±(2%+5)
Active power Range 0.01 kW - 600 kW
Accuracy ±(2.5%+5)
Apparent power Range 0.01 kVA ~ 600 kVA
Accuracy ±(4%+5)
Reactive power Range 0.01 kVAr ~ 600 kVAr
Accuracy ±(4%+5)
Power factor Range 0.3 ~ 1
Phase angle Range 0° ~ 360°
Frequency Range 20 Hz ~ 500 Hz
Active energy 1 ~ 9999 kWh
Power 1.5 V battery (LR16)
Dimensions (H × W × D) 303 × 112 × 39 mm
Weight 601 g

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

User Manual

PDF  Download UNI-T UT243 User Manual.

Sofware

Download UNI-T UT243 Sofware.

Package Contents

  • UNI-T UT243 clamp meter module (1 pc.)
  • Test lead (4 pcs.)
  • USB interface cable (1 pc.)
  • Case (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Measured Values
  • AC voltage
  • AC
  • frequency
  • power
  • cos φ
Additional Functions
  • data hold
  • connection to PC (USB)
  • mnemonic
  • max / min
  • RMS measurement
  • backlight
Range Selection
  • auto range
Type
  • for AC
Jaw diameter
  • diameter 55 mm
Digit Capacity
  • 9999
AC Voltage
  • up to 600 V
Capacitance
  • does not measure the capacitance
DC
  • does not measure the DC
Temperature
  • no
Power
  • yes
Duty cycle
  • no
True RMS
  • yes
Backlight
  • yes
PC connection
  • USB
Diode test
  • no
Analog bar graph
  • no
DC Voltage
  • does not measure the DC voltage
Continuity test
  • no
AC
  • up to 1000 A
Three-phase voltage measurement
  • yes
Three-phase current measurement
  • no
Resistance
  • doesn't measure resistance
Frequency
  • up to 60 Hz
NCV
  • no
