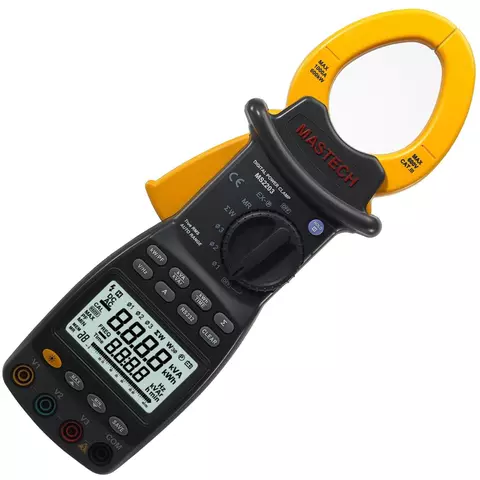

Digital Clamp on Meter MASTECH MS2203

id: 819038
0.8 kg Warranty: 6 month (s)
A digital clamp on meter for AC voltage and current, frequency, active power, apparent power, power factor, reactive power and active energy measurements in three-phase circuits.
Price coming soon
Contact
sales team
Price coming soon
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Video
Delivery
Payment
Warranty
Overview

A digital clamp on meter measures AC voltage and current, frequency, active power, apparent power, power factor, reactive power and active energy in three-phase circuits.

MASTECH MS2203 Digital Clamp on Meter Features

  • Backlit large 4-digit (9999) backlit LCD with bargraph
  • Max 50 mm measured cable diameter
  • Functions:
    • AC voltage and current
    • frequency
    • active power
    • apparent power
    • power factor
    • reactive power
    • active energy
  • Autoranging
  • PC RS232C interface
  • Voltage and current true RMS managment
  • Min/Max mesuarements

MASTECH MS2203 Digital Clamp on Meter Technical Specifications

Display 4-digit (9999) LCD with
Max. measured cable diameter Ø50 mm
AC voltage, V 100/300/600V (±1.2%)
AC current, A 40/100/400/1000A (±2%)
Frequency, Hz 20Hz~1000Hz (0.5 %)
Active power, kW 4/10/40/100/600kW (±3.0%)
Apparent power, kVA 4/10/40/100/600kVA (±3.0%)
Power factor, PF 0.3cap to 0.3ind (±0.02%)
Reactive power, kVAR 4/10/40/100/600kVAR (±4.0%)
Active energy, kWh 10/100/1000/10000kWh (±3.0%)
Power 4 × 1,5V AA (not included)
Dimensions (H × W × D), mm 300 × 103 × 51
Weight, g 500 (with battery)

Video

Youtube video
Specifications
Measured Values
  • AC voltage
  • AC
  • frequency
  • power
  • cos φ
Additional Functions
  • data hold
  • connection to PC (RS232)
  • automatic shutdown/sleep mode
  • mnemonic
  • max / min
  • backlight
Range Selection
  • auto range
Type
  • for AC
Jaw diameter
  • diameter 50 mm
Digit Capacity
  • 9999
AC Voltage
  • up to 600 V
Frequency
  • up to 1 MHz
Capacitance
  • does not measure the capacitance
DC
  • does not measure the DC
Temperature
  • no
Power
  • yes
Duty cycle
  • no
True RMS
  • yes
Backlight
  • yes
PC connection
  • RS232
Diode test
  • no
Analog bar graph
  • yes
Transistor check
  • no
DC Voltage
  • does not measure the DC voltage
Continuity test
  • no
AC
  • up to 1000 A
Three-phase voltage measurement
  • yes
Three-phase current measurement
  • no
Resistance
  • doesn't measure resistance
