Overview

2.7 kg 220 V Warranty: 6 months

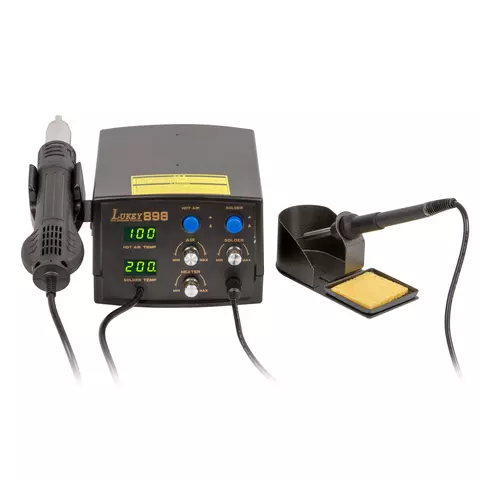

Lukey 898 Digital Hot Air Soldering Station + Solder. SMD Rework Station. Leadfree.
Buy wholesale and save
You may also like
Description
Hot air analog, two channel, soldering/desoldering station Lukey 898. This device by it’s specifications, it is used to solve repairing problems, first of all for portable electronics (mobile phones, video cameras etc.) household appliances.
Features
Read more
Description
Hot air analog, two channel, soldering/desoldering station Lukey 898. This device by it’s specifications, it is used to solve repairing problems, first of all for portable electronics (mobile phones, video cameras etc.) household appliances.
Features
- 2 displays with digital temperature indication of hot air gun and soldering iron.
- Stand-alone temperature control of hot air gun and soldering iron, electronic temperature control provides excellent heat stability even under abrupt air volume change.
- 350 W hot air gun, maximum airflow quantity - 120 l/min, package includes - 3 cylindrical nozzles with different diameters.
- Automatic cooling of hot air gun, after power off, prevents heating element overheating.
- Antistatic performance, electrical isolation, power voltage 24 V enables protection of electronic components and plate.
- Soldering iron 24 V, power 50 W; supplied with ceramic heating element which ensures reliable performance, durability and temperature stability.
- Base package includes bit - cone with butt-end 0, 4 mm, durable, chromium. Soldering bits are compatible with soldering systems HAKKO and XYTRONIC to provide wide choice of nozzles.
- Rack with cellulose sponge for moist bit cleaning, which is included to the package, protects soldering iron from mechanical damages when falling and also from accidental contact with heated elements.
- Combined design developed to optimize working place.
Technical Specifications
Operating voltage | 220 V |
Power consumption | 750 W |
Soldering iron wattage | 50 W |
Hot air gun wattage | 350 W |
Airflow rate | 120 l/min |
Hot air gun temperature range | 100–480 °C |
Soldering iron temperature range | 200–480 °C |
Dimensions | 160 × 190 × 116 mm |
Package Contents
- Soldering station Lukey 898 — 1 pc.
- Soldering iron — 1 pc.
- Nozzles — 3 pcs.
- Rack with cellulose sponge — 1 pc.
- Soldering iron and hot air gun stand — 1 pc.
- Power cable — 1 pc.
Compatible Soldering Tips
Conical Soldering Tips | ||
---|---|---|
![]() AOYUE T-0.5C |
![]() AOYUE T-0.8C |
![]() AOYUE T-B |
![]() AOYUE T-I |
![]() AOYUE T-LB |
![]() AOYUE T-S4 |
![]() AOYUE T-S8 |
![]() AOYUE T-SB |
![]() AOYUE T-SI |
Bevel Type Soldering Tips | ||
![]() AOYUE T-1C |
![]() AOYUE T-1.5CF |
![]() AOYUE T-1.5CM |
![]() AOYUE T-2C |
![]() AOYUE T-2CF |
![]() AOYUE T-2CM |
![]() AOYUE T-3C |
![]() AOYUE T-3CF |
![]() AOYUE T-3CM |
![]() AOYUE T-4C |
![]() AOYUE T-4CF |
![]() AOYUE T-4CM |
![]() AOYUE T-S6 |
![]() AOYUE T-S7 |
|
Chisel Type Soldering Tips | ||
![]() AOYUE T-0.8D |
![]() AOYUE T-1.2D |
![]() AOYUE T-1.2LD |
![]() AOYUE T-1.6D |
![]() AOYUE T-2LD |
![]() AOYUE T-2.4D |
![]() AOYUE T-3.2D |
![]() AOYUE T-3.2LD |
![]() AOYUE T-S3 |
![]() AOYUE T-S9 |
||
Bent Type Soldering Tips | ||
![]() AOYUE T-0.2RB |
![]() AOYUE T-1.8H |
![]() AOYUE T-H |
Knife Type Soldering Tips | ||
![]() AOYUE T-K |
||
Soldering Tips for SMD | ||
![]() AOYUE T-R |
![]() AOYUE T-RT |
