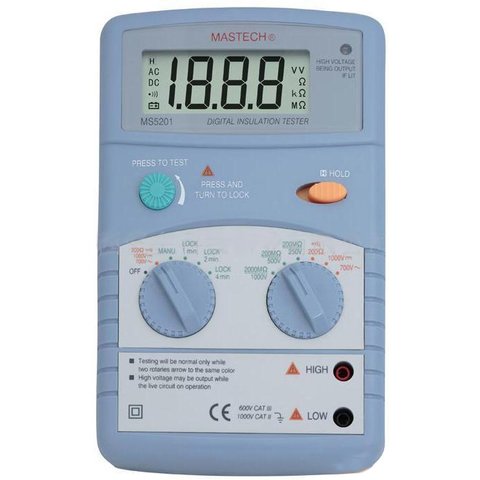

Digital Insulation Tester MASTECH MS5201
sales team
You may also like
Digital megger Mastech MS5201 is used to measure insulation resistance in the current-carrying elements of high-voltage power networks. The device meets the requirements of IEC1010-1 CAT III 600V and CAT II 1000V safety standard. The measurement results can be observed on a big LCD with 22 mm high digits and saved by means of the HOLD function. Sound and flash alarm options are applied in the Mastech MS5201 for overload indication. The tester is powered from 6 x AA 1,5 V batteries.
Features:
- Designed to international safety standard IEC1010-1 CAT III 600V, CAT II 1000V
- Data HOLD function
- Sound and flash alarm options
- Display: 1999 counts, digits are 22 mm high
- Insultation resistance:
200 MΩ/250 V ±3.0%,
200 MΩ/500 V ±3.0%,
0 ~ 1000 MΩ/1000 V ±3.0%,
1000 ~ 2000 MΩ/1000 V ±5.0% - DC voltage: 1000 V ±0.8%
- AC voltage: 700 V ±1.5%
- Resistance: 200 Ω ±1.2%
- Continuity test
- Battery powered: 1.5 V (AA) x 6
- Size: 190 x 82 x 36 mm
Digital megger Mastech MS5201 is used to measure insulation resistance in the current-carrying elements of high-voltage power networks. The device meets the requirements of IEC1010-1 CAT III 600V and CAT II 1000V safety standard. The measurement results can be observed on a big LCD with 22 mm high digits and saved by means of the HOLD function. Sound and flash alarm options are applied in the Mastech MS5201 for overload indication. The tester is powered from 6 x AA 1,5 V batteries.
Features:
- Designed to international safety standard IEC1010-1 CAT III 600V, CAT II 1000V
- Data HOLD function
- Sound and flash alarm options
- Display: 1999 counts, digits are 22 mm high
- Insultation resistance:
200 MΩ/250 V ±3.0%,
200 MΩ/500 V ±3.0%,
0 ~ 1000 MΩ/1000 V ±3.0%,
1000 ~ 2000 MΩ/1000 V ±5.0% - DC voltage: 1000 V ±0.8%
- AC voltage: 700 V ±1.5%
- Resistance: 200 Ω ±1.2%
- Continuity test
- Battery powered: 1.5 V (AA) x 6
- Size: 190 x 82 x 36 mm
