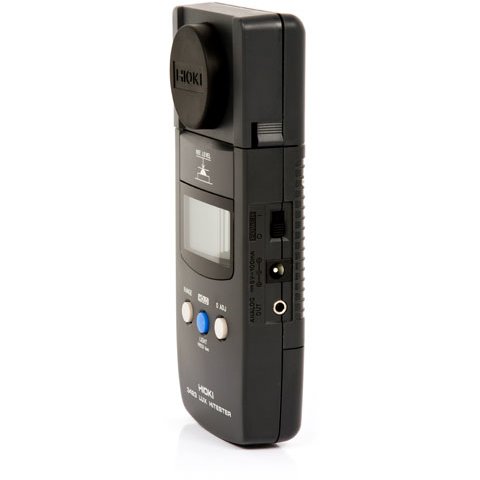

Digital Light Meter HIOKI HiTester 3423

id: 818977
Digital Light Meter HIOKI HiTester 3423
Overview
Description
Delivery
Payment
Warranty
USD 489.00
Notify
when in stock
Overview
Brand: HIOKI
0.49 kg Warranty: 36 months
A digital light meter for a broad range of illumination measurements. 5 ranges, max scale of 199 900 lx. Detachable sensor for remote measurements.
USD 489.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 489.00
Notify
when in stock
Impossible to estimate the shipping cost
Description

This digital light meter is an easy-to-operate hand-held unit that measures a broad range of illumination, from the low light to a maximum intensity of 199 900 lx. The HIOKI HiTester digital light meter is an ideal solution for lighting work, illumination equipment, and facility management.

HIOKI LUX HiTESTER 3423 Digital Light Meter Review

HIOKI HiTester 3423 Digital Light Meter User Manuals

Download additional information about HIOKI HiTester 3423 digital light meter

Download HIOKI HiTester 3423 digital light meter user manual

HIOKI HiTester 3423 Digital Light Meter Features

  • 3½ digit (1999) LCD with EL backlight
  • 5 measurement ranges, max scale of 199 900 lx
  • Detachable sensor for remote measurements of illumination
  • Analog output
  • Auto/Manual ranging
  • Low battery indicator

HIOKI HiTester 3423 Digital Light Meter Technical Specifications

Display 3½ digit (1999) LCD with EL backlight
20.000 lx range with max 19 990 / 10d steps,
200.000 lx range with max199 900 / 100d steps
Range 20 / 200 / 2 000 /20 000 / 200 000 lx full-scale, 5 ranges
Accuracy ±4 % rdg. ± 1d (environment temperature 23 ±5°C)
Receptor element Silicon photodiode
Other functions Sensor separate: permits remote measurement with the sensor separated from the main unit (using HIOKI 9436 cable, not included).
Analog output: 200 mV DC at full scale rate.
Power supply R6P (AA) × 2 (3 V) or AC adapter (6 V, 300 mA)
Dimensions (W × H × D) 74 × 170 × 30 mm
2.91 × 6.69 × 1.18 in
Weight (including the batteries) 310g
10.9 oz

HIOKI HiTester 3423 Digital Light Meter Package Content

  • Light meter HIOKI HiTester 3423
  • 9376 carrying case
  • Sensor cap
  • R6P batteries (2 pcs.)
Read more
Description

This digital light meter is an easy-to-operate hand-held unit that measures a broad range of illumination, from the low light to a maximum intensity of 199 900 lx. The HIOKI HiTester digital light meter is an ideal solution for lighting work, illumination equipment, and facility management.

HIOKI LUX HiTESTER 3423 Digital Light Meter Review

HIOKI HiTester 3423 Digital Light Meter User Manuals

Download additional information about HIOKI HiTester 3423 digital light meter

Download HIOKI HiTester 3423 digital light meter user manual

HIOKI HiTester 3423 Digital Light Meter Features

  • 3½ digit (1999) LCD with EL backlight
  • 5 measurement ranges, max scale of 199 900 lx
  • Detachable sensor for remote measurements of illumination
  • Analog output
  • Auto/Manual ranging
  • Low battery indicator

HIOKI HiTester 3423 Digital Light Meter Technical Specifications

Display 3½ digit (1999) LCD with EL backlight
20.000 lx range with max 19 990 / 10d steps,
200.000 lx range with max199 900 / 100d steps
Range 20 / 200 / 2 000 /20 000 / 200 000 lx full-scale, 5 ranges
Accuracy ±4 % rdg. ± 1d (environment temperature 23 ±5°C)
Receptor element Silicon photodiode
Other functions Sensor separate: permits remote measurement with the sensor separated from the main unit (using HIOKI 9436 cable, not included).
Analog output: 200 mV DC at full scale rate.
Power supply R6P (AA) × 2 (3 V) or AC adapter (6 V, 300 mA)
Dimensions (W × H × D) 74 × 170 × 30 mm
2.91 × 6.69 × 1.18 in
Weight (including the batteries) 310g
10.9 oz

HIOKI HiTester 3423 Digital Light Meter Package Content

  • Light meter HIOKI HiTester 3423
  • 9376 carrying case
  • Sensor cap
  • R6P batteries (2 pcs.)
