Digital Microscope Andonstar A1
id: 904202
Digital Microscope Andonstar A1
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 67.99
Overview
0.5 kg Warranty: 6 months
Andonstar A1 is suitable for use in professional services (including with soldering stations), at home and laboratories, and in education and training. Read more
USD 67.99
Buy wholesale and save
Description

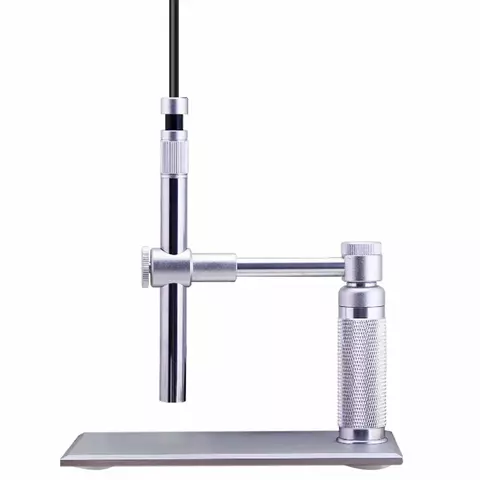

Andonstar A1 is a compact digital microscope equipped with a superior lens and a high-quality COMS sensor that can produce images with a magnification factor up to 500 quickly and efficiently. Andonstar A1 is supplied with a stable metal tripod to be used at any workstations and is equipped with 8 LED lights, so it can operate without additional lighting.
Features
- High-quality lens and COMS sensor for improved performance
- 8 LEDs for sufficient illumination
- Stable metal stand
- Portable, detachable and easy to install
Technical Specifications
| Diameter | 12 mm | ||
| Magnification ratio | 500 times | ||
| Image sensor | COMS sensor, 2 M pixel | ||

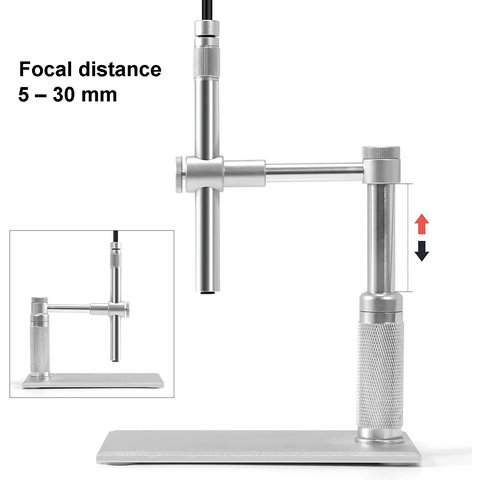

| Focus range | Manual, 5 – 30 mm | ||
| Frame rate | 30 frames/sec (with resulation 640 × 480), 5 frames/sec (with resolution 1,600 × 1,200) | ||
| Photo format | JPEG, BMP | ||
| Video format | AVI | ||
| PC interface | USB 2.0 | ||
| Light source | 8 LEDs (adjustable with a control wheel) | ||
| USB cable length | 165 cm | ||
| Stand size | 150 mm × 80 mm × 120 mm | ||
| Weight | 400 g | ||
| Certification | CE/FCC/ROHS |
Package Contents
- Andonstar A1 microscope — 1 pc.
- Metal stand — 1 pc.
- Attachment pack — 1 pc.
Specifications
| Type |
|
| Illumination |
|
| Zoom Rate Control Method |
|
| Image Sensor Size |
|
| Maximum Zoom Ratio |
|
