Digital Microscope with Monitor Andonstar AD206

id: 895890
Bestseller
1.25 kg
Availability in stock: HK
Warranty: 6 month (s)
Digital USB microscope features an HD sensor, LED double backlight, fine multiplicity adjustment, and up to 200x digital magnification. Comes with an IR remote.
USD 85.00
Add to cart
USD 85.00
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

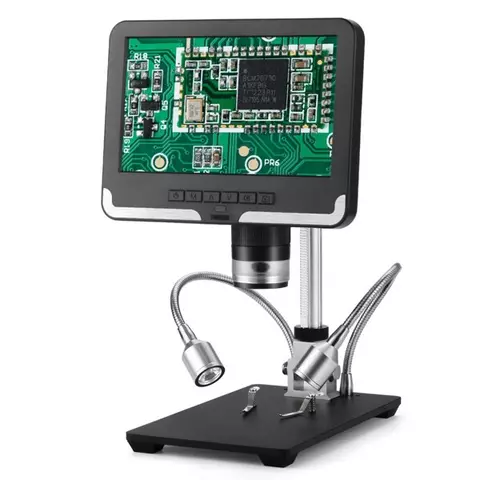

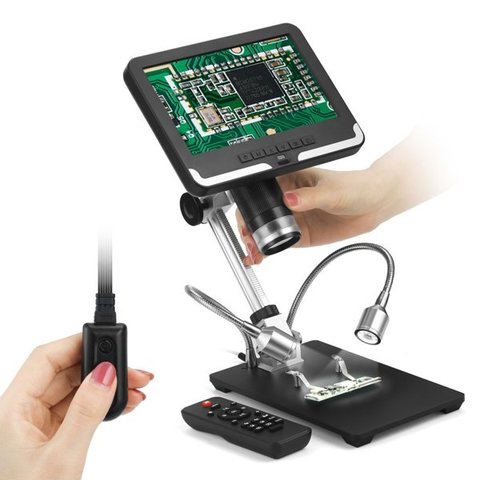

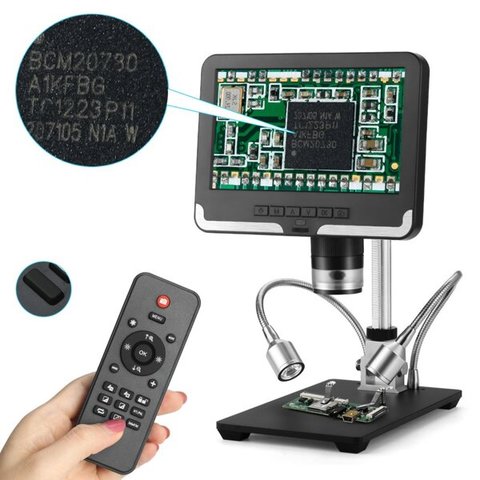

Andonstar AD206 is a digital USB microscope equipped with a 7-inch display, 2 MP image sensor and dual adjustable LED light source. The device has a large working distance and a wide focus range.  A stable metal stand with a swivel holder ensures precise microscope positioning.

Features

  • Equipped with a 7-inch monitor and IR remote control.
  • Lens with UV filter and a cover to protect the lens from dust and high temperatures.
  • Large working distance and a wide focus range.
  • Magnification up to 220X.
  • Built-in image processing technology.
  • A stable metal stand with a swivel holder.
  • Light source: 8 built-in LED and 2 LED with the stand.

Technical Specifications

Image sensor 2 MP HD Sensor
Video output FHD 1920×1080 30FPS
1080P 1440×1080 30FPS
720P 1280×720 30FPS
Video format  AVI
Magnification up to 200X
Photo resolution max. 12M (4032×3024)
Photo format JPG
Focus range 20 mm ~ 170 mm
Frame rate 30 f/s
Storage micro-SD card (up to 32 G)
PC support no
Power source 5 V DC
Light source 8 built-in LED & 2 LED with the stand
Display 7"
Stand dimensions 200 mm × 120 mm × 190 mm
Package dimensions 320 mm × 220 mm × 100 mm
Package weight 1400 g

User Manual

PDF  Download Andonstar AD206 user manual.

Package Contents

  • Digital Microscope with Monitor Andonstar AD206 — 1 pc.
  • Metal Stand — 1 pc.
  • Switch Cable — 1 pc.
  • UV Filter — 1 pc.
  • Lens Cover — 1 pc.
  • Power Adapter — 1 pc.
  • IR Remote — 1 pc.
  • User Manual — 1 pc.
Specifications
Maximum Zoom Ratio
  • up to 200X
Illumination
  • upper light
Zoom Rate Control Method
  • smooth adjustment of multiplicity
Image Sensor Size
  • 2.0 MP
Type
  • USB / with a display
