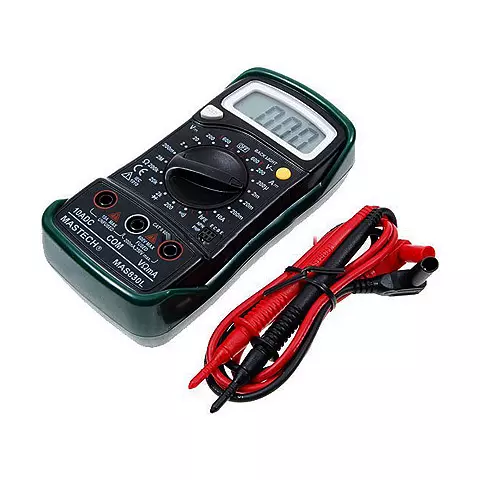

Digital Multimeter MASTECH MAS830L

id: 9361
Digital Multimeter MASTECH MAS830L
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
Overview
Rate product
0.37 kg Warranty: 6 months
Economy class multimeter with basic function package. Read more
Price coming soon
Contact
sales team
Compare
Compare
Price coming soon
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Digital Multimeter Accta AT 130
New
Add to wishlist
ID: 891500
Digital Multimeter Accta AT-130
USD 6.89
Add to wishlist
Add to cart
A digital multimeter for DC current and AC/DC voltage, and resistance measurements, as well as diode and continuity tests. Manual range selection.
Availability in stock: HK
Shipping cost
ID: 891500 0.3 kg
Description

MASTECH MAS830L - economical multimeter with basic function package.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

MASTECH MAS830L Technical Specifications

Measuring number per second 2-3
Measurement range selection manual
DC voltage  200mV/2/20/200/600V ±0.8%
AC voltage 200mV-600V ±1.2%
DC current  200µ A/2/20/200mA /10A ±3.0%
Resistance 200Ω /2K/20K/200K Ω/2M Ω ±1.0%
Input resistance  1M Ω
Transistors current gain rate up to 1000
Conductivity wire identification yes
Diode, transistor test yes
Data Hold 1 cell
Charge battery indication yes
Overload indication "1". yes
Display illumination yes
Power source 9V / NEDA 1604 type/
Dimensions 69 ? 138 ? 31mm
Weight (with battery) 170g
Specifications
Type
  • digital
Range Selection
  • manual range
Digit Capacity
  • 1999
DC Voltage
  • up to 600 V
AC Voltage
  • up to 600 V
Resistance
  • up to 2 MOhm
DC
  • up to 10 A
AC
  • does not measure the AC
Capacitance
  • does not measure the capacitance
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
Battery Testing
  • no
