Digital Multimeter MASTECH MS8205C

id: 7736
Digital Multimeter MASTECH MS8205C
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
Overview
0.6 kg Warranty: 6 months
Digital and analog measurement indication. Enables temperature and capacity measurement. Auto ranging. Electronic overload protection.
Price coming soon
Contact
sales team
Compare
Compare
Price coming soon
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT55
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT55
USD 30.31
Add to wishlist
Add to cart
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, as well as diode, transistor and continuity tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 834629 0.82 kg
Digital Multimeter UNI T UT39C+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT39C+
USD 15.26
Add to wishlist
Add to cart
Measures AC/DC voltage and current, resistance, capacitance, frequency, temperature and hFE (transistor measurement). Diode, continuity and non-contact voltage (NCV) testing. Manual range selection.
Bestseller
Availability in stock: HK
Shipping cost
ID: 883714 0.5 kg
Description

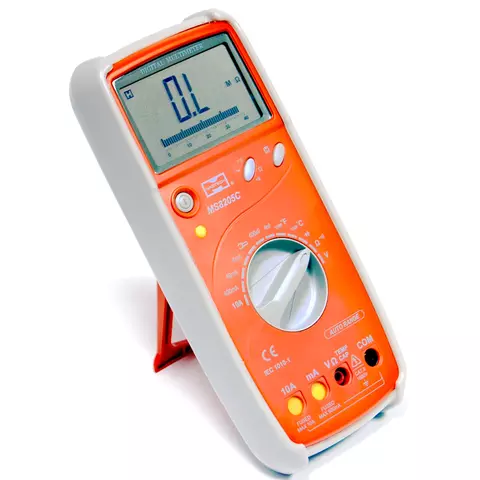

Digital multimeter Mastech MS8205C with automatic ranging has large 3 ½ digits LCD display and 40-segmanted line graphic scale in the bottom, which displays measured quantity value in mnemonic style. Electronic overload protected. The device is applied  for crystal detector testing and electronic circuit continuity.

This model is compatible with Test Leads MASTECH T3000

Video

Youtube video
Read more
Description

Digital multimeter Mastech MS8205C with automatic ranging has large 3 ½ digits LCD display and 40-segmanted line graphic scale in the bottom, which displays measured quantity value in mnemonic style. Electronic overload protected. The device is applied  for crystal detector testing and electronic circuit continuity.

This model is compatible with Test Leads MASTECH T3000

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical specifications

Auto/Manual ranging manual
Counts 3999
DC voltage   4/40/400 V ±0.5%, 1000 V ±0.8%
AC voltage  4/40/400 V ±1.2%, 750 V ±1.5%
DC current   4/40/400 mA ±1.2%, 10A ±2.0%
400A (current clamp meter, not included in the package) (±1.2%)
AC current   4/40/400 mA ±1.5%, 10A ±3.0%
400A (current clamp meter, not included in the package) (±1.5%)
Resistance  400Ω /4kΩ /40kΩ /400kΩ /4MΩ ±1.2%, 40MΩ ±3.0%
Capacitance 4/400 nF ±4.0%
Temperature measurement range t°C 0-750°C/ 0-1400°F
Conductivity wire identification yes
Diode test yes
Automatic power-off yes
Data Hold yes
Overload protection yes
Display illumination yes
Power source 6F22 (9V) × 1
Dimensions 191 × 82 × 36 mm
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • temperature
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • mnemonic
  • indication of proper connection of test leads
  • diode test
  • backlight
Range Selection
  • auto range
Digit Capacity
  • 3999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 40 MOhm
DC
  • up to 10 A
AC
  • up to 10 A
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • no
Continuity test
  • yes
Capacitance
  • up to 400 nF
Battery Testing
  • no
