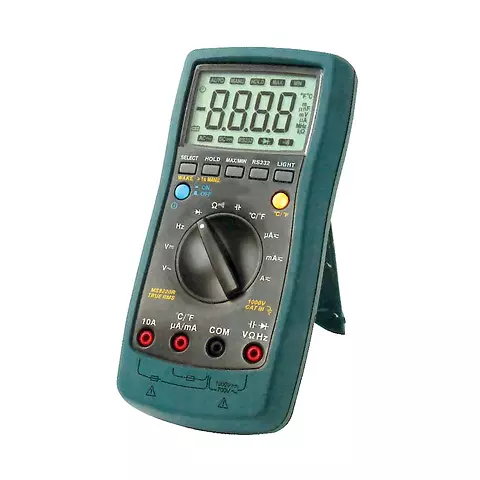

Digital Multimeter MASTECH MS8220R

id: 9375
1.4 kg Warranty: 6 month (s)
High-precision and multifunctional. Automatic and manual ranging. Counts-5999. Temperature, capacity and frequency measuring in the range from 600 Hz to 60 MHz. Automatic power off.
Price coming soon
Contact
sales team
Price coming soon
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Video
Delivery
Payment
Warranty
Overview

MASTECH MS8220R is a high-precision and multifunctional professional digital multimeter with automatic and manual ranging. Counts – 5999. Temperature, capacity and frequency measuring in the range from 600 Hz to 60 MHz. Automatic shutdown.

This model is compatible with MASTECH T3009 test leads.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Software

Download MASTECH MS8220R Digital Multimeter Software

Technical Specifications

Ranging automatic/manual
Counts 5999
DC voltage  6/60/600 V ±0.5%, 1000 V ±0.8%
AC voltage 6/60/600 V±0.8%, 1000 V ±1.0%
DC current  600/6000 µA/60/600 mA ±1.2%, 10A ±1.5%
AC current  600/6000 µA/60/600 mA±1.5%, 10A ±2.0%
Frequency 6000 Hz - 60 MHz
Resistance 600 Ω/6/60/600 kΩ/6MΩ ±1.0%, 60 Ω ±1.5%
Temperature measurement range t°C -40°C ~ 1000°C±2.9%
Capacitance 6 nF - 6000 µF
Conductivity wire identification yes
Diode, transistor test yes
Automatic power-off yes
Data Hold yes
Power source 6F22 (9 V)x1
Dimensions 195 × 92 × 43 mm

Package Contents

  • Digital multimeter — 1 pc.
  • Test Leads — 2 pc.
  • Thermocouple — 1 pc.
  • Battery (9-Volt) — 1 pc.
  • PC connecting cable (RS-232) — 1 pc.
  • CD with software — 1 pc.
  • User's manual — 1 pc.
  • Case — 1 pc.
MASTECH MS8220R
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • temperature
Additional Functions
  • acoustic continuity test
  • data hold
  • connection to PC (RS232)
  • automatic shutdown/sleep mode
  • max / min
  • diode test
  • transistors test
  • backlight
Range Selection
  • auto range
Digit Capacity
  • 5999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 1000 V
Resistance
  • up to 60 MOhm
Capacitance
  • up to 6000 μF
Frequency
  • up to 60 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • yes
Backlight
  • yes
PC connection
  • RS232
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
Battery Testing
  • no
