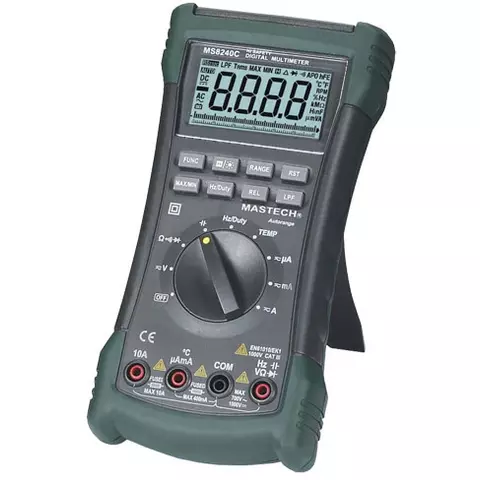

Digital Multimeter MASTECH MS8240C

id: 820006
Digital Multimeter MASTECH MS8240C
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
Overview
0.55 kg Warranty: 6 months
A digital multimeter for AC/DC current and voltage, resistance, capacitance, frequency, temperature measurements, continuity and diode tests.
Price coming soon
Contact
sales team
Compare
Compare
Price coming soon
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT58E
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT58E
USD 53.62
Add to wishlist
Add to cart
A digital multimeter for AC/DC current and voltage, resistance, capacitance, frequency, temperature measurements, and diode, continuity and transistor tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 819446 0.67 kg
Digital Multimeter Accta AT 280
Bestseller
New
Add to wishlist
Digital Multimeter Accta AT-280
USD 27.00
Add to wishlist
Add to cart
True RMS multimeter that measures AC/DC current and voltage, resistance, inductance, conductance, capacitance, frequency, and temperature. May be used for diode and transistor testing.
Bestseller
New
Availability in stock: HK
Shipping cost
ID: 891572 0.714 kg
Digital Multimeter UNI T UT89X
Add to wishlist
Digital Multimeter UNI-T UT89X
USD 20.98
Add to wishlist
Add to cart
It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, temperature, diode, hFE, continuity and NCV, distinguish between neutral and live wires.
Availability in stock: HK
Shipping cost
ID: 886900 1 kg
Digital Multimeter UNI T UT890C
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT890C
USD 16.95
Add to wishlist
Add to cart
True RMS multimeter for measuring AC/DC voltage & current, resistance, frequency, capacitance, temperature, and performing hFE, diode, continuity tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 893958 0.5 kg
Description

This digital multimeter measures AC/DC current and voltage, resistance, capacitance, frequency, temperature and tests continuity and diodes.

MASTECH MS8240C Digital Multimeter Features

  • 3 5/6 digit (5999) LCD with backlight
  • Functions:
    • AC/DC current and voltage
    • resistance
    • capacitance
    • frequency
    • temperature
    • duty cycle
    • continuity test (with buzzer)
    • diode test
  • Relative reference measurements
  • Max/Min measurements
  • Data hold function
  • Auto/Manual ranging
  • Auto power off
  • Low battery indication
  • LPF function (Low Pass Filter)

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

MASTECH MS8240C Digital Multimeter Technical Specifications

Display 3 5/6 digit (5999) LCD with backlight
DC voltage 600mV/6V/60V/600V (±0.5%)
1000V (±0.8%)
AC voltage 6V/60V/700V (50Hz) (±1.0%)
6V/60V/700V (2kHz) (±1.0%)
DC current 600μA/6mA/60mA/600mA/10A (±1.2%)
AC current 600μA/6mA/60mA/600mA (±1.5%)
10A (±2.0%)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ (±1.0%)
Capacitance 40nF/400nF/4μF/40μF/400μF (±3.0%)
Frequency 1Hz - 10MHz (±0.2%)
Temperature -10 to 700°C (±3.0%)
Duty cycle 1.0% to 99% (±0.2%)
Power 4 × 1.5V AA
Dimensions, (H × W × D) 205 × 102 × 58
Weight, g (with batteries) 390
Read more
Description

This digital multimeter measures AC/DC current and voltage, resistance, capacitance, frequency, temperature and tests continuity and diodes.

MASTECH MS8240C Digital Multimeter Features

  • 3 5/6 digit (5999) LCD with backlight
  • Functions:
    • AC/DC current and voltage
    • resistance
    • capacitance
    • frequency
    • temperature
    • duty cycle
    • continuity test (with buzzer)
    • diode test
  • Relative reference measurements
  • Max/Min measurements
  • Data hold function
  • Auto/Manual ranging
  • Auto power off
  • Low battery indication
  • LPF function (Low Pass Filter)

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

MASTECH MS8240C Digital Multimeter Technical Specifications

Display 3 5/6 digit (5999) LCD with backlight
DC voltage 600mV/6V/60V/600V (±0.5%)
1000V (±0.8%)
AC voltage 6V/60V/700V (50Hz) (±1.0%)
6V/60V/700V (2kHz) (±1.0%)
DC current 600μA/6mA/60mA/600mA/10A (±1.2%)
AC current 600μA/6mA/60mA/600mA (±1.5%)
10A (±2.0%)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ (±1.0%)
Capacitance 40nF/400nF/4μF/40μF/400μF (±3.0%)
Frequency 1Hz - 10MHz (±0.2%)
Temperature -10 to 700°C (±3.0%)
Duty cycle 1.0% to 99% (±0.2%)
Power 4 × 1.5V AA
Dimensions, (H × W × D) 205 × 102 × 58
Weight, g (with batteries) 390
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • porosity
  • temperature
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • mnemonic
  • max / min
  • relative measurements
  • diode test
  • backlight
Range Selection
  • auto range
Digit Capacity
  • 5999
DC Voltage
  • up to 1000 V
Resistance
  • up to 60 MOhm
Frequency
  • up to 10 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • yes
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • no
AC Voltage
  • up to 700 V
Continuity test
  • yes
Capacitance
  • up to 400 μF
Battery Testing
  • no
