Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, as well as diode, transistor and continuity tests.
Availability in stock:
HK
ID: 834629 0.82 kg

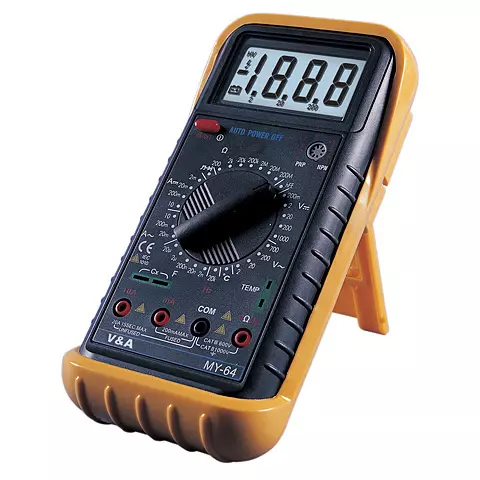

Digital multimetr Mastech MY64 has a large function package. It allows to measure environment temperature, direct and continuous current strength, direct and continuous voltage, resistance, transistor current gain rate, capacitance and frequency. High input resistance shows high accuracy of the device. Bright protective case of soft polymer, included to the package of multimetr Mastech MY64, protects the device from damages while falling down or bumping. Operating position of the measuring device can be changed by means of back panel stop.
You'll find even more video reviews in the Video tab. Go and check it out!
Measuring number per second | 2-3 |
Auto/Manual ranging | manual |
DC voltage | 0,1 mV/1000 V |
AC voltage | 1 mV/700 V |
DC current | 1µ A/10 A |
AC current | 10µ A/10 A |
Frequency | 10 Hz-20 kHz |
Resistance | 0,1Ω - 200MΩ |
Input resistance | 10 MΩ |
Temperature measurement range t°C | -20° - 1000° |
Transistors current gain rate | up to 1000 |
Capacitance | 1pF- 20µ F |
Conductivity wire identification | yes 50 Ω |
Diode, transistor test | yes |
Automatic power-off | ~40 min |
Charge battery indication | yes |
Overload indication "1". | yes |
Power source | 9 V |
Dimensions | 91 × 189 × 31,5 mm |
Type |
|
Range Selection |
|
Digit Capacity |
|
DC Voltage |
|
Resistance |
|
Capacitance |
|
Frequency |
|
DC |
|
AC |
|
Inductance |
|
Temperature |
|
Power |
|
Duty cycle |
|
True RMS |
|
Backlight |
|
PC connection |
|
Diode test |
|
Analog bar graph |
|
Transistor check |
|
AC Voltage |
|
Continuity test |
|
Battery Testing |
|
