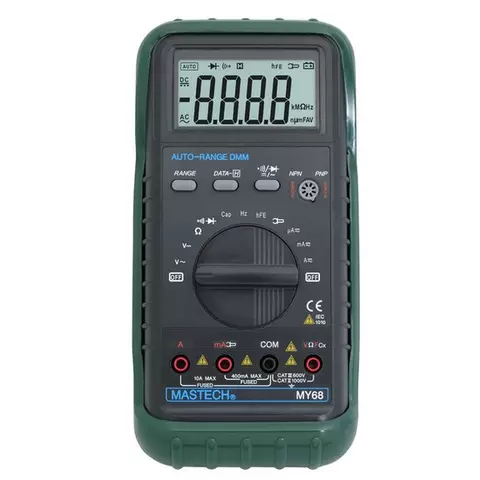

Digital Multimeter MASTECH MY68

Name: Digital Multimeter MASTECH MY68
Brand: MASTECH
SKU: 9359
Price: 21.00 USD
Availability: OutOfStock

id: 9359

Overview

Description

Specifications

Delivery

Payment

Warranty

USD 21.00

Overview

Brand:

0.71 kg Warranty: 6 months

High-precision digital multimeter for AC/DC current and voltage, resistance, capacitance, frequency measurements and continuity, diode tests. Read more

USD 21.00

Impossible to estimate the shipping cost

Description

MASTECH MY68 high-precision digital multimeter measures AC/DC current and voltage, resistance, capacitance, frequency and tests continuity and diodes.

Features

Functions:
- AC/DC current and voltage
- resistance
- capacitance
- frequency
- continuity test (with buzzer)
- diode test
Data Hold function
SMT application
Automatic power off function after 40 min standstill
Auto ranging
Low battery indicator
Analog-to-digital converter (ADC) with a use of double integration measurement method.

Comparative specifications

Model	MY68	MY68N
Ability to connect MASTECH MS3302 Clamp On Meter	No	Yes

Technical Specifications

Display	3¾ digit LCD
DC voltage, V	400mV/4V/40V/400V±0.7%, 1000V±0.8%
AC voltage, V	400mV±3.0% 4V/40V/400V±0.8% 750V±1.0%
DC current, A	400μA/4000μA/40mA/400mA±1.2% 10A±2.0%
AC current, A	400μA/4000μA/40mA/400mA±1.5% 10A±3.0%
Resistance, Ω	400Ω/4kΩ/40kΩ/400kΩ/4MΩ ±1.2% 40MΩ ±2.0%
Capacitance, F	4nF±5.0%, 40nF/400nF/4μF/40μF/200μF±3.0%
Frequency, Hz	10Hz/100Hz/1000Hz/10kHz/200kHz ±2.0%
Continuity test	buzzer sounds if R <50Ω
Standards	IEC1010-1: CAT III 600V and CAT II 1000V
Power Supply	9V 6F22 × 1
Dimensions	91 × 189 × 31,5 mm
Weight (with battery)	310 g

Package Contents

MASTECH MY68 multimeter — 1 pc.
Test leads — 1 set
Protective case — 1 pc.
User manual — 1 pc.

Specifications

Type	digital
Range Selection	auto range
DC Voltage	up to 1000 V
DC	up to 10 A
AC	up to 10 A
Inductance	no
Temperature	no
Power	no
Duty cycle	no
True RMS	no
Backlight	no
PC connection	no connection to PC
Diode test	yes
Analog bar graph	yes
Transistor check	yes
AC Voltage	up to 700 V
Continuity test	yes
Frequency	up to 150 kHz
Battery Testing	no
Digit Capacity	3260
Capacitance	up to 326 μF
Resistance	up to 32.6 MOhm
