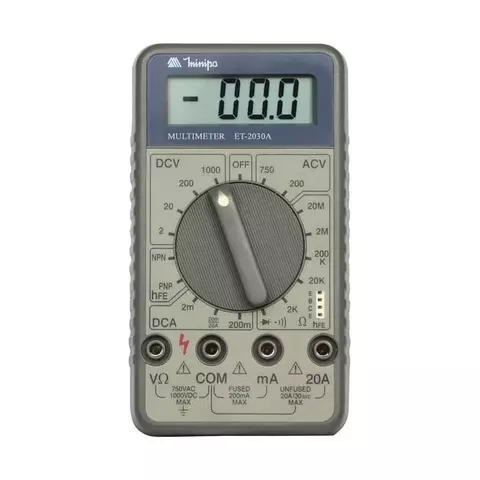

Digital Multimeter Minipa ET-2030A

id: 856820
Digital Multimeter Minipa ET-2030A
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 13.00
Notify
when in stock
Overview
0.7 kg Warranty: 36 months
Digital multimeter for measuring DC current, AC/DC voltage, resistance, as well as diode, transistor, continuity test.
USD 13.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 13.00
Notify
when in stock
Impossible to estimate the shipping cost

You may also like

Digital Multimeter Accta AT 205
New
Add to wishlist
Digital Multimeter Accta AT-205
USD 9.63
Add to wishlist
Add to cart
True RMS multimeter used to measure AC/DC voltage and current, capacitance, frequency and resistance. May be used to perform diode and continuity tests.
New
Availability in stock: HK
Shipping cost
ID: 890292 0.4 kg
Description

Minipa ET-2030A is a digital multimeter for measuring DC current, AC/DC voltage, resistance, as well as diode, transistor test and continuity check.

Features

  • 3 ½ dígits LCD, 1999
  • Auto Zero
  • Manual range
  • Measuring and test functions:
    • DC current
    • AC/DC voltage
    • resistance
    • diode test
    • transistor test
    • continuity test

User Manual

Download Minipa ET-2030A User Manual (Português).

Technical Specifications

Function Range Resolution Accuracy
DC Current 2 mA 1 μA ±(1,5%+1D)
20 mA 10 μA
200 mA 100 μA
20 A 10 mA ±(3,0%+1D)
AC Voltage 200 V 0.1 V ±(1,5%+4D)
750 V 1 V
DC Voltage 2 V 1 mV ±(0,5%+1D)
20 V 10 mV
200 V 100 mV
1000 V 1 V
Resistance 2 kΩ 1 Ω ±(1,0%+1D)
20 kΩ 10 Ω
200 kΩ 100 Ω
2 MΩ 1 kΩ
20 MΩ 10 kΩ ±(5,0%+4D)
General Characteristics
Display 3 ½ dígit LCD, max. ±1999
Power 1 x 9 V battery (NEDA 1604 or 6F22 or 006P)
Operation Environment 0°C to 50°C, relative humidity < 70% max.
Size 136 × 75 × 32 mm
Weight 193 g (with battery)

Package Contents

  1. Minipa ET-2030A Digital Multimeter – 1 pc.
  2. Test leads – 1 pair
  3. Battery – 1 pc.
  4. Instruction Manual – 1 pc.
Read more
Description

Minipa ET-2030A is a digital multimeter for measuring DC current, AC/DC voltage, resistance, as well as diode, transistor test and continuity check.

Features

  • 3 ½ dígits LCD, 1999
  • Auto Zero
  • Manual range
  • Measuring and test functions:
    • DC current
    • AC/DC voltage
    • resistance
    • diode test
    • transistor test
    • continuity test

User Manual

Download Minipa ET-2030A User Manual (Português).

Technical Specifications

Function Range Resolution Accuracy
DC Current 2 mA 1 μA ±(1,5%+1D)
20 mA 10 μA
200 mA 100 μA
20 A 10 mA ±(3,0%+1D)
AC Voltage 200 V 0.1 V ±(1,5%+4D)
750 V 1 V
DC Voltage 2 V 1 mV ±(0,5%+1D)
20 V 10 mV
200 V 100 mV
1000 V 1 V
Resistance 2 kΩ 1 Ω ±(1,0%+1D)
20 kΩ 10 Ω
200 kΩ 100 Ω
2 MΩ 1 kΩ
20 MΩ 10 kΩ ±(5,0%+4D)
General Characteristics
Display 3 ½ dígit LCD, max. ±1999
Power 1 x 9 V battery (NEDA 1604 or 6F22 or 006P)
Operation Environment 0°C to 50°C, relative humidity < 70% max.
Size 136 × 75 × 32 mm
Weight 193 g (with battery)

Package Contents

  1. Minipa ET-2030A Digital Multimeter – 1 pc.
  2. Test leads – 1 pair
  3. Battery – 1 pc.
  4. Instruction Manual – 1 pc.
Specifications
Type
  • digital
Range Selection
  • manual range
Digit Capacity
  • 2000
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 20 MOhm
DC
  • up to 20 A
AC
  • does not measure the AC
Capacitance
  • does not measure the capacitance
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
