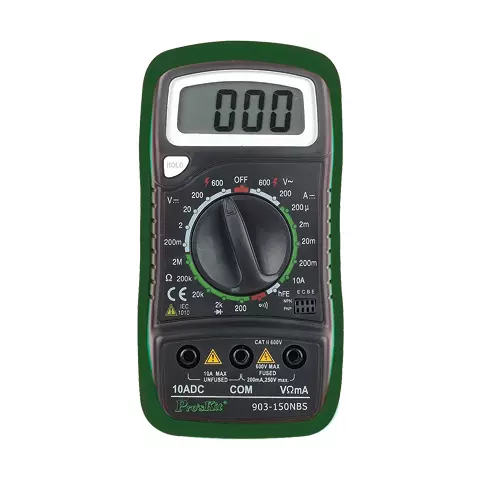

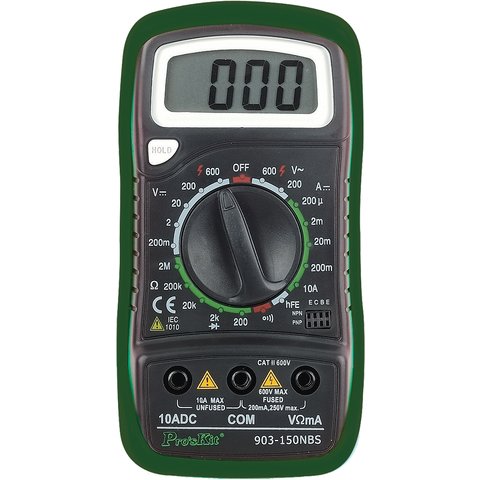

Digital Multimeter Pro'sKit 903-150NBS

id: 10548
Digital Multimeter Pro'sKit 903-150NBS
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
0.39 kg Warranty: 6 months
ProsKit 903 – 150 NBS - economical digital multimeter with basic function package. Easy-to-operate and reliable device. Provides with precise measuring results.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Pocket Digital Multimeter UNI T UT33C+
Add to wishlist
Pocket Digital Multimeter UNI-T UT33C+
USD 10.38
Add to wishlist
Add to cart
The device measures AC/DC voltage, DC current, resistance and temperature, and also may be used to test diodes and continuity.
Availability in stock: HK
Shipping cost
ID: 873653 0.8 kg
Digital Multimeter UNI T UT33D+
Add to wishlist
Digital Multimeter UNI-T UT33D+
USD 9.32
Add to wishlist
Add to cart
Pocket size digital multimeter which measures AC/DC voltage, DC current, resistance, tests diodes and checking continuity + NCV!
Availability in stock: HK
Shipping cost
ID: 885265 0.4 kg
Pocket Digital Multimeter UNI T UT33A+
Add to wishlist
Pocket Digital Multimeter UNI-T UT33A+
USD 12.93
Add to wishlist
Add to cart
The device measures AC/DC voltage, AC/DC current, resistance and capacitance, and is used for diode check and continuity test.
Availability in stock: HK
Shipping cost
ID: 873656 0.8 kg
Description

ProsKit 903 – 150 NBS - economical digital multimeter with basic function package. Easy-to-operate and reliable device. Provides with precise measuring results.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Read more
Description

ProsKit 903 – 150 NBS - economical digital multimeter with basic function package. Easy-to-operate and reliable device. Provides with precise measuring results.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Specifications:

Measurement range selection manual
Indicator peak value  1999
Digits 3 ½
Basic DC accuracy 0,80%
DC voltage  200mV/2/20/200V ±0.5%
600V ±0.8%
AC voltage 200/600V ±1.2%
DC current  200µ A/2m/20mA ±1.0%
200m A ±1.5%
10A ±3.0%
Resistance 200/2k/20/200k Ω ±0.8%
2M Ω±1.0%
Conductivity wire identification yes
Diode, transistor test yes
Data Hold yes
Charge battery indication yes
Power source 6F22 (9V) x1
Dimensions 138 × 69 × 31 mm
Weight (with battery) 325g
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • DC
  • resistance
Additional Functions
  • acoustic continuity test
  • data hold
Range Selection
  • manual range
Digit Capacity
  • 1999
DC Voltage
  • up to 600 V
AC Voltage
  • up to 600 V
Resistance
  • up to 2 MOhm
DC
  • up to 10 A
AC
  • does not measure the AC
Capacitance
  • does not measure the capacitance
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
Battery Testing
  • no
