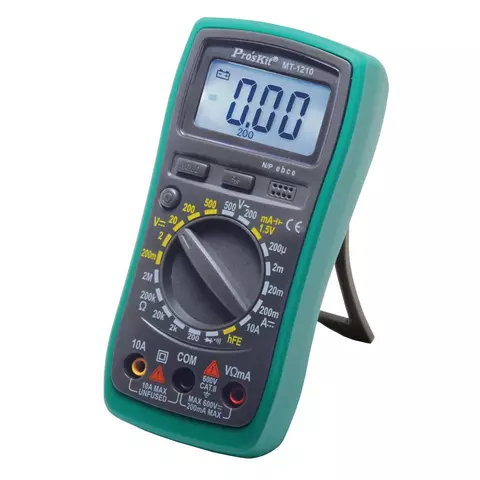

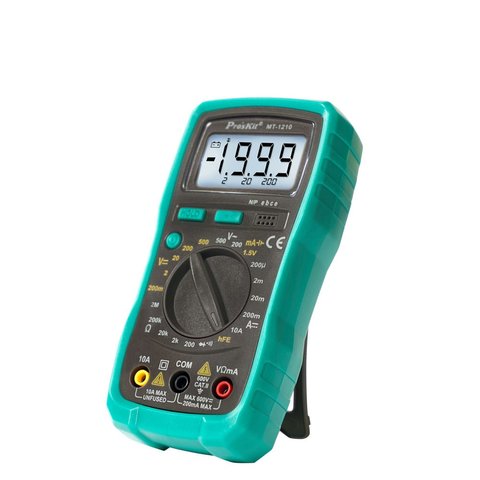

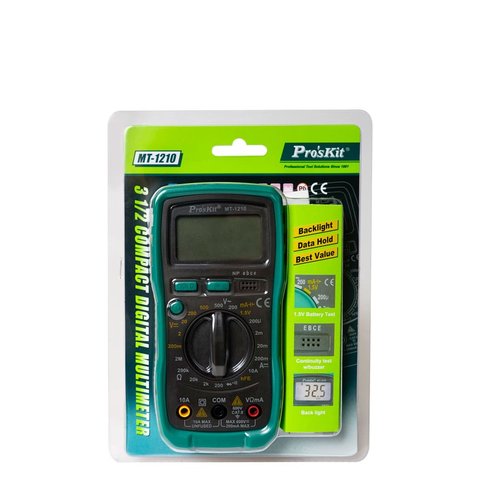

Digital Multimeter Pro'sKit MT-1210

id: 818891
0.5 kg Warranty: 6 month (s)
Digital multimeter for AC/DC voltage and DC current, resistance measurements, and continuity, diode, transistor and battery(1.5V) tests.
Contact
sales team
Contact
sales team
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Video
Delivery
Payment
Warranty
Overview

Digital multimeter measures AC/DC voltage and DC current, resistance, and tests continuity, diodes, transistors and batteries (1.5V).

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Pro'sKit MT-1210 Digital Multimeter Features

  • 3½ digit (1999) LCD
  • 1.0% best accuracy
  • Functions:
    • DC current
    • AC/DC voltage
    • resistance
    • continuity (with buzzer)
    • diode test
    • transistor test
    • 1.5V battery test
  • Backlight
  • Manual ranging
  • Data hold function
  • Low battery indication

Video

Youtube video

Pro'sKit MT-1210 Digital Multimeter Technical Specifications

Display 3½ digit (1999) LCD
DC voltage, V 200mV ±(1.0%+2d)
2V/20V/200V ±(1.0%+2d)
500V ±(1.2%+5d)
AC voltage, V 200V ±(2.5%+10d)
500V ±(2.5%+10d)
DC current, A 200μA ±(2.0%+5d)
2mA/20mA/200mA ±(2.0%+5d)
10A ±(3.0%+5d)
Resistance, Ω 200Ω ±(1.0%+5d)
2kΩ/20kΩ/200kΩ ±(1.0%+5d)
2MΩ ±(1.5%+5d)
Special Function 1.5V battery and transistor tests
Battery NEDA 1604 or 6F22 9V (not included)
Size (D × W × H), mm 144 × 70 × 32
Weight, g 175
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • DC
  • resistance
Additional Functions
  • acoustic continuity test
  • data hold
  • diode test
  • transistors test
  • backlight
Range Selection
  • manual range
Digit Capacity
  • 1999
DC Voltage
  • up to 500 V
AC Voltage
  • up to 500 V
Resistance
  • up to 2 MOhm
DC
  • up to 10 A
AC
  • does not measure the AC
Capacitance
  • does not measure the capacitance
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
NCV
  • no
Battery Testing
  • yes
