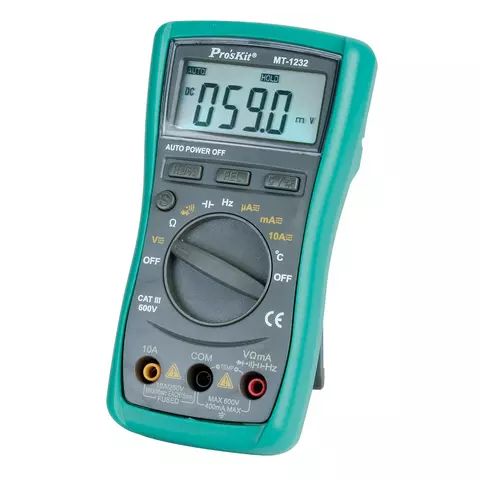

Digital Multimeter Pro'sKit MT-1232

id: 816324
Digital Multimeter Pro'sKit MT-1232
Overview
Description
Specifications
Delivery
Payment
Warranty
Contact
sales team
Overview
0.35 kg Warranty: 12 months
Digital multimeter for AC/DC current and voltage, resistance, capacity, frequency measurements, and for continuity and diode tests.
Contact
sales team
Compare
Compare
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT136C+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT136C+
USD 18.86
Add to wishlist
Add to cart
Measures AC/DC voltage and current, resistance, capacitance, frequency, temperature, hFE (transistor measurement), and also performs diode and transistor tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 883716 0.5 kg
A reliable True RMS multimeter used to measure AC/DC voltage and current, capacitance, frequency, resistance, duty cycle, and temperature, and to perform diode and continuity tests.
Bestseller
New
Availability in stock: HK
Shipping cost
ID: 891577 0.4 kg
Description

Digital multimeter measures AC/DC current, voltage, resistance, capacity, frequency and tests continuity and diodes. Due to its complete functions, high measurement accuracy and convenient operation, the multimeter is an ideal tool for industrial and research applications as well as for radio fans and household.

Pro'sKit MT-1232 Digital Multimeter Features

  • Large 3 ¾ LCD (3999)
  • Functions:
    • AC/DC voltage and current
    • resistance
    • frequency
    • capacitance
    • continuity (with buzzer)
    • diode test
    • temperature
  • No transistor and LED test
  • Relative measurement mode
  • Data hold function
  • Auto ranging
  • Overload protection with overrange indication on the display
  • Input alert
  • Auto power off
  • Low battery indication

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Pro'sKit MT-1232 Digital Multimeter Technical Specifications

Display  3 ¾ (1999) LCD, 18,9 mm
Sampling rate approx. 3 times / sec.
Measuring method Dual integral A/D converter
Temperature sensor K-type thermocouple (nickel-chromium / nickel-silicon) with banana plug
DC  voltage, V 400mV/4V/40V/400V ± (0.5% + 4d)
600V ± (1.0% + 4d)
AC voltage, V 4V/40V/400V ± (0.8% + 6d)
600V ± (1.0% + 6d)
DC current, A 400µA/4000µA ± (1.0% + 10d)
40mA/400mA ± (1.0% + 10d)
10A ± (1.2% + 10d)
AC current, A 400µA/4000µA ± (1.5% + 10d)
40mA/400mA ± (1.5% + 10d)
10A ± (2.5% + 15d)
Resistance, Ω 400Ω ± (0.8% + 5d)
4kΩ/40 kΩ/400kΩ/4MΩ ± (0.8% + 4d)
40MΩ ± (1.2% + 10d)
Frequency, Hz 1Hz/10Hz/100Hz ± (0.5% + 10d)
1kHz/10kHz/100kHz ± (0.5% + 10d)
1MHz/10MHz ± (0.5% + 10d)
Capacitance, F 4nF ± (0.5% + 90d)
40nF/400nF/4µF/40µF ± (3.5% + 8d)
100µF ± (5.0% + 8d)
Temperature, ºC (-20 °C~1000 °C) < 400 ± (1.0% + 5d)
(-20 °C~1000 °C) ≥ 400 ± (1.5% + 15d)
Safety standard EN61010-1 CAT II 600 V / CAT III
Battery 2 x 1.5 V AA
Size (D × W × H), mm 145 × 74 × 36
Weight, g 190 (with batteries)

Pro'sKit MT-1232 Digital Multimeter Package Contains

  • Digital Multimeter Pro'sKit MT-1232 (1 pc)
  • 10 A test leads (1 pair)
  • Temperature probe (1 pc)
  • Instruction manual (1 copy)
Read more
Description

Digital multimeter measures AC/DC current, voltage, resistance, capacity, frequency and tests continuity and diodes. Due to its complete functions, high measurement accuracy and convenient operation, the multimeter is an ideal tool for industrial and research applications as well as for radio fans and household.

Pro'sKit MT-1232 Digital Multimeter Features

  • Large 3 ¾ LCD (3999)
  • Functions:
    • AC/DC voltage and current
    • resistance
    • frequency
    • capacitance
    • continuity (with buzzer)
    • diode test
    • temperature
  • No transistor and LED test
  • Relative measurement mode
  • Data hold function
  • Auto ranging
  • Overload protection with overrange indication on the display
  • Input alert
  • Auto power off
  • Low battery indication

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Pro'sKit MT-1232 Digital Multimeter Technical Specifications

Display  3 ¾ (1999) LCD, 18,9 mm
Sampling rate approx. 3 times / sec.
Measuring method Dual integral A/D converter
Temperature sensor K-type thermocouple (nickel-chromium / nickel-silicon) with banana plug
DC  voltage, V 400mV/4V/40V/400V ± (0.5% + 4d)
600V ± (1.0% + 4d)
AC voltage, V 4V/40V/400V ± (0.8% + 6d)
600V ± (1.0% + 6d)
DC current, A 400µA/4000µA ± (1.0% + 10d)
40mA/400mA ± (1.0% + 10d)
10A ± (1.2% + 10d)
AC current, A 400µA/4000µA ± (1.5% + 10d)
40mA/400mA ± (1.5% + 10d)
10A ± (2.5% + 15d)
Resistance, Ω 400Ω ± (0.8% + 5d)
4kΩ/40 kΩ/400kΩ/4MΩ ± (0.8% + 4d)
40MΩ ± (1.2% + 10d)
Frequency, Hz 1Hz/10Hz/100Hz ± (0.5% + 10d)
1kHz/10kHz/100kHz ± (0.5% + 10d)
1MHz/10MHz ± (0.5% + 10d)
Capacitance, F 4nF ± (0.5% + 90d)
40nF/400nF/4µF/40µF ± (3.5% + 8d)
100µF ± (5.0% + 8d)
Temperature, ºC (-20 °C~1000 °C) < 400 ± (1.0% + 5d)
(-20 °C~1000 °C) ≥ 400 ± (1.5% + 15d)
Safety standard EN61010-1 CAT II 600 V / CAT III
Battery 2 x 1.5 V AA
Size (D × W × H), mm 145 × 74 × 36
Weight, g 190 (with batteries)

Pro'sKit MT-1232 Digital Multimeter Package Contains

  • Digital Multimeter Pro'sKit MT-1232 (1 pc)
  • 10 A test leads (1 pair)
  • Temperature probe (1 pc)
  • Instruction manual (1 copy)
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • porosity
  • temperature
Additional Functions
  • acoustic continuity test
  • automatic shutdown/sleep mode
  • relative measurements
  • diode test
Range Selection
  • auto range
Digit Capacity
  • 3999
DC Voltage
  • up to 600 V
AC Voltage
  • up to 600 V
Resistance
  • up to 40 MOhm
Capacitance
  • up to 100 μF
Frequency
  • up to 10 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • yes
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
