Digital Multimeter Pro'sKit MT-1710
id: 861891

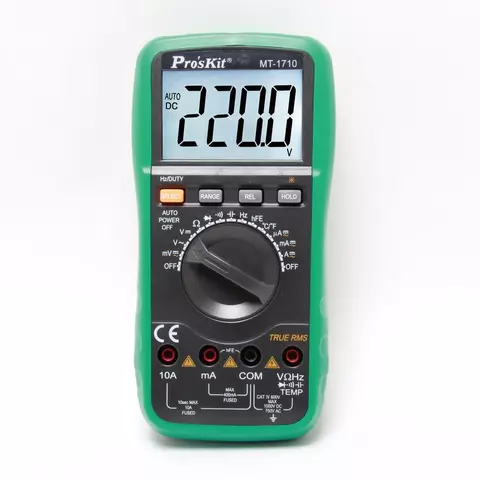

Digital Multimeter Pro'sKit MT-1710
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Price coming soon
Overview
Video
Video
0.55 kg Warranty: 12 months
True RMS digital multimeter which measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature and can be used for continuity and diode tests. Read more
Price coming soon
Frequently bought together
Description
Pro'sKit MT-1710 is a True RMS digital multimeter which measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature and can be used for continuity and diode tests.
Features
- Measurement functions:
- AC/DC voltage
- AC/DC current
- capacitance
- resistance
- frequency
- temperature
- diode test
- continuity test
- True RMS measurements
- Data hold
- Auto power-off
- Auto ranging
- Low battery indication
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Display | 3999 counts, 3 3/4 digits, LCD, backlight | |
| DC voltage | Range | 400 mV / 4 V / 40 V / 400 V / 1000 V |
| Accuracy | ±(0.5%+4) | |
| AC voltage | Range | 400 mV / 4 V / 40 V / 400 V / 750 V |
| Accuracy | ±(8.0%+15) | |
| DC current | Range | 400 μA / 4000 μA / 40 mA / 400 mA / 10 A |
| Accuracy | ±(1.0%+10) | |
| AC current | Range | 400 μA / 4000 μA / 40 mA / 400 mA / 10 A |
| Accuracy | ±(1.5%+10) | |
| Resistance | Range | 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ |
| Accuracy | ±(0.8%+5) | |
| Capacitance | Range | 10 nF / 100 nF / 1 μF / 10 μF / 100 μF / 1 mF / 10 mF / 100 mF |
| Accuracy | ±(3.5%+8) | |
| Frequency | 100 Hz - 30 MHz | |
| Temperature | -20 °C ~ 1000 °C (-4 °F ~ 1832 °F) | |
| Power | 9 V (NEDA 1640/6F22) battery | |
| Dimensions | 190 × 95 × 45 mm | |
Package Contents
- Multimeter Pro'sKit MT-1710 (1 pc.)
- Test leads (1 pair)
- Temperature probe (1 pc.)
- User manual (1 pc.)
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| Capacitance |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Continuity test |
|
| Frequency |
|
| NCV |
|
| Battery Testing |
|
