Overview

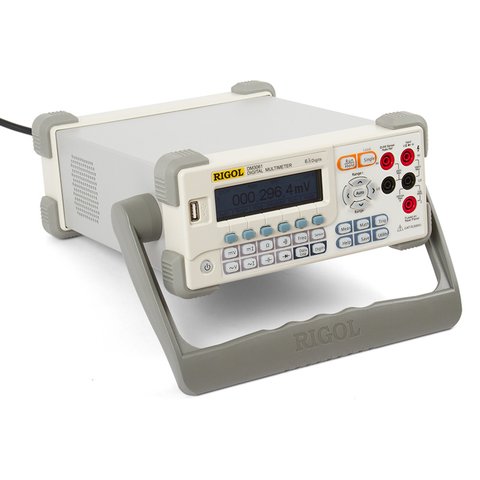

Digital Multimeter Rigol DM3061
Brand: RIGOL
2.7 kg 110, 220 V Warranty: 36 months
26 measurement functions: DC/AC voltage and current, 2- and 4-wire resistance, capacitance, continuity test, frequency, temperature, etc. Resolution: 6½ digits. Read more
Discontinued
Discontinued
Impossible to estimate the shipping cost

You may also like

Description

Digital multimeter with 6½ resolution for measuring DC/AC voltage and current, 2-wire and 4-wire resistance, capacitance, frequency, period, temperature, and so on

Rigol DM3061 Digital Multimeter Features

  • Resolution: 6½ digits and 2,400,000 Count
  • 50 KS/s maximum sample rate
  • 26 measurement functions:
    • DC/AC voltage and current, 2-wire and 4-wire resistance, capacitance, continuity test, diode test, frequency, period, ratio test, temperature, and so on
    • Upper limit and lower limit on threshold measurement
    • Arithmetic: maximum, minimum, limit, average, dBm, dB
    • Data acquisition functions: data records, inspection, automatic measurement
  • 256 x 64 pixel monochrome LCD
  • Built in Storage: Store up to 10 setup configurations,10 Data records and 10 sensor setups
  • Simple, convenient, flexible control software: Ultralogger, Ultrasensor and UltraDMM Supports for Microsoft® Windows 98/Me/2000/XP
  • Approval: CAT II 300V and CAT I 1000V. Pollution Degree 1.
  • Size (H x W x D): 107 x 232 x 91 mm
  • Weight: 2.5kg

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Rigol DM3061 Digital Multimeter Comparative Specifications

Model DM3052 DM3054 DM3058 DM3061 DM3062 DM3064
Resolution 5 ¾ 5 ½ 6 ½
Configuration N.A. LAN/GPIB LAN/GPIB and Multiplexer Module LXI/GPIB N.A. LAN/GPIB LAN/GPIB and Multiplexer Module
Maximum Sample Rate 50 K/s 120 K/s 50 K/s

Rigol DM3061 Digital Multimeter Rigol DM3061 Digital Multimeter Technical Specifications

Range Resolution Accuracy 1
DC Voltage 200 mV 100 nV 0.0085+0.0070
2 V 1 µV 0.0078+0.0007
20 V 10 µV 0.0085+0.0005
200 V 100 µV 0.0100+0.0012
1000 V 1 mV 0.0110+0.0010
DC Current 2 mA 10 nA 0.076+0.050
20 mA 100 nA 0.075+0.006
200 mA 1 µA 0.081+0.005
1 A 10 µA 0.073+0.030
10 A 100 µA 0.330+0.020
4-wire Resistance (or 2–wire using Math Null) 200 Ω 100 µΩ 0.020+0.011
2 KΩ 1 mΩ 0.015+0.002
20 KΩ 10 mΩ 0.015+0.001
200 KΩ 100 mΩ
2 MΩ 1 Ω
10 MΩ 10 Ω 0.056+0.006
100 MΩ 100 Ω 0.800+0.015
Diode Test 2.4 V Range fixed at 2 VDC 0.010+0.050
Continuity 2 kΩ Range fixed at 2 kΩ 0.010+0.050
Capacitance 2 nF 0,1 pF 2 + 2.5
20 nF 1 pF 1 + 0.5
200 nF 10 pF
2 µF 100 pF
20 µF 1 nF
Range Frequency Range Accuracy 1
AC Voltage (RMS) 200 mV 3 - 10 Hz 5.1+0.07
10 - 40 Hz 0.60+0.07
40 Hz - 20 kHz 0.15+0.07
20 - 50 kHz 0.16+0.05
50 - 100 kHz 0.60+0.20
100 - 300 kHz 4.50+0.80
2V, 20V, 200V, 750V 3 - 10 Hz 5.10+0.07
10 - 40 Hz 0.38+0.07
40 Hz - 20 kHz 0.11+0.07
20 - 50 kHz 0.40+0.07
50 - 100 kHz 0.60+0.10
100 - 300 kHz 4.00+0.80
AC Current (RMS) 20 mA, 200 mA 3 - 10 Hz
5.1+0.07
10 - 40 Hz 0.64+0.07
40 Hz - 5 kHz 0.22+0.07
5 - 10 kHz 0.22+0.25
1 A 3 - 10 Hz 5.2+0.27
10 - 40 Hz 0.71+0.27
40 Hz - 5 kHz 0.29+0.27
5 - 10 kHz 0.35+0.4
10 A 3 - 10 Hz 5.4+0.07
10 - 40 Hz 0.9+0.07
40 Hz - 5 kHz 0.9+0.06
5 - 10 kHz 0.75+0.06
Range Frequency Range Accuracy 2
Frequency
Period		 200mV, 2V, 20V, 200V, 750V 3 - 5 Hz
0.07
5 - 10Hz 0.04
10 - 40 Hz 0.02
40 - 300 kHz 0.007
20mA, 200mA, 1A, 10A 3Hz-5Hz 0.07
5Hz-10Hz 0.04
10Hz-10kHz 0.007

1Accuracy (% of reading + % of range) is specified for a period of one year after calibration and at 23°C±5°C.
2Accuracy (% of reading) is specified for a period of one year after calibration and at 23°C±5°C.

Rigol DM3061 Digital Multimeter Package contains

  • Power Cord
  • USB Data Cable
  • Two test Leads (black and red)
  • User Manual
  • A CD-ROM
    • User Guide
    • UltraSensor PC Software
    • UltraLogger PC Software

Rigol DM3061 Digital Multimeter Applications

  • Experimental project test
  • Electronic signal monitor and control
  • User Defined Test
  • Aging Test

Specifications

Type
  • digital
  • desktop
Range Selection
  • auto range
Digit Capacity
  • 400 000
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Capacitance
  • up to 20 μF
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • yes
Backlight
  • yes
PC connection
  • USB
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
Resistance
  • up to 100 MOhm
Frequency
  • up to 300 kHz
Battery Testing
  • no
