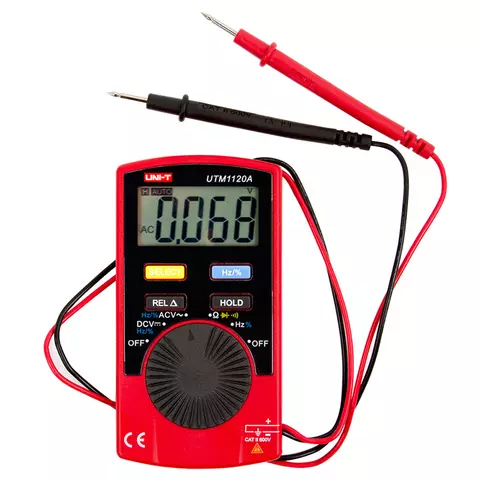

Digital Multimeter UNI-T UT120A

id: 847050
0.5 kg
Availability in stock: HK
Warranty: 24 month (s)
Palm-size digital multimeter for measuring AC/DC voltage, resistance, frequency, as well as diode and continuity tests. Data hold, auto power-off, REL measurements.
USD 12.70
Add to cart
USD 12.70
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Note! This item is shipped within 7 working days.
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

UNI-T UT120A Digital Multimeter is a high-quality multifunction pocket digital multimeter. This convenient portable device is powered from a 3 V battery. UNI-T UT120A is characterized by multiple measurements (AC/DC voltage, resistance, frequency) and tests (diode, continuity) and auto power-off function, data hold function.

Features

  • Compact and lightweight palm-size device.
  • Auto power-off function (after 30 min).
  • Data hold function.
  • Auto ranging.
  • Relative measurements mode (REL).
  • Multiple measurements & tests:
    • AC Voltage.
    • DC Voltage.
    • Resistance.
    • Frequency.
    • Diode testing.
    • Continuity test.
  • Continuity buzzer.
  • 3 V battery power (included).
  • Low battery indication (≤ 2.4 V).
  • Cable length: 50 cm.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Function Range Accuracy
DC Voltage 400 mV / 4 V / 40 V / 600 V ±(0.8%+3)
AC Voltage 4 V / 40 V / 400 V / 600 V ±(1.2%+3)
Resistance 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ ±(1.0%+2)
Frequency 10 Hz ~ 100 kHz ±(0.5%+3)
Duty Cycle 0.1% ~ 99.9%
Imput Impedance for DC Voltage Measurement ~ 10 MΩ
General Characteristics
Power 3 V Battery (CR2032)
Display LCD, 43 × 22 mm
Size 109 × 57.9 × 13 mm
Weight 75.26 g

Package Contents

  • UNI-T UT120A Digital Multimeter Unit — 1 pc.
  • Test leads — 2 pc.
  • Plastic protective case— 1 pc.
  • User manual — 1 pc.

Note! Batteries are not included in the package.

Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • resistance
  • frequency
  • porosity
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • relative measurements
  • diode test
Range Selection
  • auto range
Digit Capacity
  • 3999
DC Voltage
  • up to 600 V
AC Voltage
  • up to 600 V
Resistance
  • up to 40 MOhm
Frequency
  • up to 100 kHz
AC
  • does not measure the AC
Capacitance
  • does not measure the capacitance
DC
  • does not measure the DC
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • yes
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
