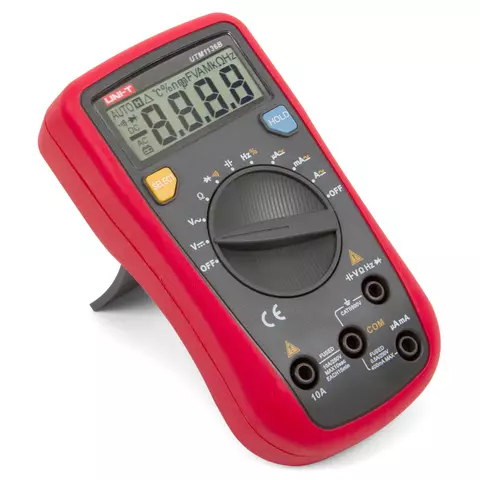

Digital Multimeter UNI-T UT136B

id: 854607
0.6 kg Warranty: 24 month (s)
Auto-ranging digital multimeter for measuring functions: AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Duty Cycle and for testing diodes.
Discontinued
Find substitute
Discontinued
Find substitute
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Video
Delivery
Payment
Warranty
Overview

UNI-T UT136B auto-ranging digital multimeter that offers users various functions, stable performance, low power consumption, high degree of safety and reliability, and therefore has become an ideal portable tool for maintenance and repairing.

Features

  • Measuring functions:
    • DC Voltage
    • AC Voltage
    • DC Current
    • AC Current
    • Resistance
    • Capacitance
    • Frequency
    • Duty Cycle
    • Diode test
  • Features:
    • Continuity Buzzer
    • Auto Power Off
    • Low Battery Display
    • Data Hold

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Measurement Functions
DC Voltage 400 mV / 4 V / 40 V / 400 V / 500 V Accuracy: ±(0.8%+1)
AC Voltage 400 mV / 4 V / 40 V / 400 V / 500 V Accuracy: ±(1.2%+3)
DC Current 400 μA / 4 mA / 40 mA / 400 mA / 4 A / 10 A Accuracy: ±(1.0%+2)
AC Current 400 μA / 4 mA / 40 mA / 400 mA / 4 A / 10 A Accuracy: ±(1.2%+5)
Resistance 400 Ω / 4000 Ω / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ Accuracy: ±(1.0%+2
Capacitance 4 nF / 40 nF / 400 nF / 4 μF / 40 μF / 100 μF Accuracy: ±(4.0%+3)
Frequency 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz / 10 MHz Accuracy: ±(0.5%+3)
Duty Cycle 0.1% ∽ 99.9%
Input Impedance for Voltage Measurement ≥10 MΩ
General Characteristics
Power 9V Battery (6F22)
LCD Size 49 mm × 18 mm
Size 72 mm × 137 mm × 35 mm
Weight ~ 200 g (battery included)

Package Contents

  • UNI-T UT136B Digital Multimeter – 1 pc.
  • Measuring Probes – 2 pcs.
  • User Manual – 1 pc.

Note! Batteries are not included in the package.

Specifications
Type
  • digital
Range Selection
  • auto range
Digit Capacity
  • 3999
DC Voltage
  • up to 500 V
AC Voltage
  • up to 500 V
Resistance
  • up to 40 MOhm
Capacitance
  • up to 100 μF
Frequency
  • up to 10 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • yes
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
