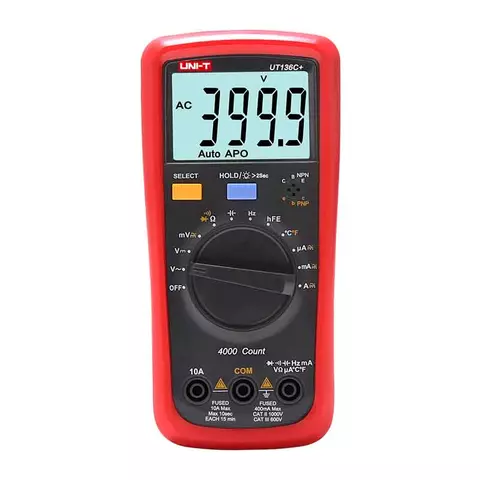

Digital Multimeter UNI-T UT136C+

id: 883716
Bestseller
0.5 kg
Availability in stock: HK
Warranty: 24 month (s)
Measures AC/DC voltage and current, resistance, capacitance, frequency, temperature, hFE (transistor measurement), and also performs diode and transistor tests.
USD 17.60
Add to cart
USD 17.60
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Note! This item is shipped within 7 working days.
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

UNI-T UT136C+ is a safe and reliable multimeter with an innovative design that ensures the product's shock resistance (drop from 2 meters height). It is equipped with a large LCD screen that provides a clear display. The tool is suitable for civil and commercial use.

Features

  • Testing & measurement functions:
    • AC/DC voltage;
    • AC/DC current;
    • resistance;
    • capacitance;
    • frequency;
    • temperature;
    • transistor testing;
    • diode testing;
    • hFE (transistor measurement).
  • Measures up to 1000 V DC/AC voltage.
  • Measures up to 10 A DC/AC current.
  • Quick capacitance measuring (1 mF in 4 seconds).
  • Backlight.
  • Continuity buzzer.
  • Data hold function.
  • Test probe holder.
  • 2 m drop proof.
  • Large LCD dual display; up to 4 x/s sampling rate.
  • Low power consumption and auto power saving function.
  • Long battery service life (>500 hrs).
  • Low battery indication.
  • Auto power off.
  • Safety standards: CAT II 1000V, CAT III 600V.

Video

Youtube video

Technical Specifications

Function Range Accuracy
DC voltage 1000 V ±(0.7%+3)
AC voltage 1000 V ±(1%+3)
DC current 10 A ±(1%+3)
AC current 10 A ±(1.2%+5)
Resistance 40 MΩ ±(0.8%+2)
Capacitance 40 mF ±(3%+5)
Frequency 400 Hz ~ 40 mHz ±(0.1%+4)
Temperature °C -40~100 ±(1%+4)
°F -40~183 ±(1.5%+5)
General Specifications
Power 1.5 V battery (R6) × 2
Display 4000 count, LCD, 56,5 × 36 mm
Dimensions 175 × 83 × 53 mm
Weight 330 g

User Manual

PDF Download UNI-T UT136C+ User Manual.

Package Contents

  1. Digital Multimeter UNI-T UT136C+ — 1 pc.
  2. Test leads — 2 pcs.
  3. Temperature probe — 1 pc.
  4. User manual — 1 pc.

Note! Batteries are not included in the package.

Specifications
Type
  • digital
Range Selection
  • auto range
Digit Capacity
  • 3999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 1000 V
Resistance
  • up to 40 MOhm
Capacitance
  • up to 40 000 μF
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
Frequency
  • up to 40 MHz
NCV
  • no
Battery Testing
  • no
Video
Youtube video
