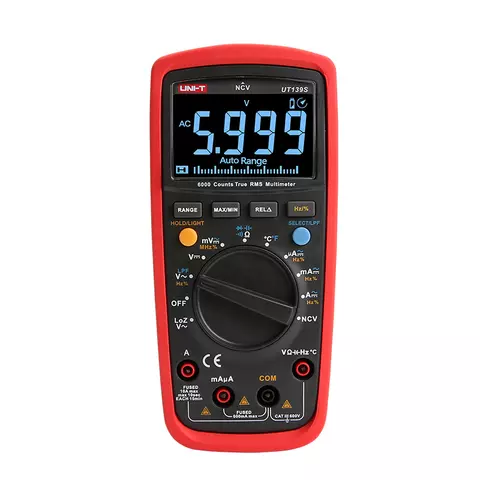

Digital Multimeter UNI-T UT139S
id: 883721
0.6 kg Warranty: 24 months
True RMS multimeter which measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle and temperature. Read more
Buy wholesale and save
You may also like
Frequently bought together
UNI-T UT139S is a True RMS multimeter which measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle and temperature.
Features
- Testing & measurement functions:
- AC/DC voltage;
- AC/DC current;
- capacitance;
- resistance;
- frequency;
- duty cycle;
- temperature;
- diode testing;
- continuity test (with buzzer);
- NCV.
- Auto/Manual ranging.
- True RMS measurements.
- Bandwidth: 45 Hz to 400 Hz.
- Data hold.
- Max/Min mode.
- CAT III 600 B rated.
- Large EBTN display that is perfect meter for working in dark environments.
- 31-segment analog bar graph.
- LPF function.
- LoZ function.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
Function | Range | Accuracy | |
---|---|---|---|
DC voltage | 600 V | ±(0.5%+2) | |
AC voltage | 600 V | ±(0.8%+3) | |
DC current | 10 A | ±(0.7%+2) | |
AC current | 10 A | ±(1%+3) | |
Resistance | 60 MΩ | ±(0.8%+2) | |
Capacitance | 99.99 mF | ±(4%+5) | |
Frequency | 10 Hz ~ 10 MHz | ±(0.1%+4) | |
Duty cycle | 0.1% ~ 99.9% | ||
Temperature | °C | -40°C ~ 1000°C | ±(1%+4) |
°F | -40°F ~ 1832°F | ±(1.5%+5) | |
General Specifications | |||
Power | 1.5 V battery (R6) × 2 | Bandwidth | 45 Hz ~ 400 Hz |
Display | 6000-count, LCD EBTN, 58 × 36 mm | ||
Dimensions | 170 × 80 × 48 mm | ||
Weight | 345 g |
User Manual
Download UNI-T UT139S User Manual.
Package Contents
- Digital Multimeter UNI-T UT139S — 1 pc.
- Test leads — 2 pcs.
- Point contact temperature probe — 1 pc.
- User manual — 1 pc.
Note! Batteries are not included in the package.
