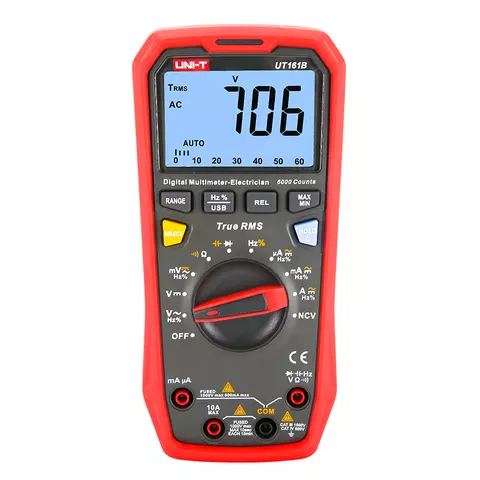

UNI-T UT161B (UT61B+ analogue) is a True RMS digital multimeter that can measure AC/DC voltage/current, resistance, capacitance, frequency, and duty ratio and test diodes, transistors, and continuity. Equipped with sonic/visual alarm to provide warning when measuring high voltage/current. A wide range of embedded features makes it a practical measuring tool for many application areas.
| Function | Range | Accuracy |
|---|---|---|
| AC current | 10 A | ±(1.2%＋5) |
| DC current | 10 A | ±(1%＋2) |
| AC voltage | 1000 V | ±(1%＋3) |
| DC voltage | 1000 V | ±(0.5%＋3) |
| Resistance | 60 MΩ | ±(1%＋2) |
| Capacitance | 60 mF | ±(3%＋5) |
| Frequency | 10 MHz | ±(0.1%＋4) |
| Duty cycle | 0.1% ~ 99.9% | ±(2%＋5) |
| General Specifications | ||
| Display count | 6,000 | |
| Power | 1.5 V battery (R03) × 4 pcs. | |
| Dimensions | 190 mm × 90 mm × 50 mm | |
| Weight | 350 g | |
| Safety rating | CAT III 1000 V/CAT IV 600 V | |
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| Frequency |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Capacitance |
|
| Continuity test |
|
| NCV |
|
| Battery Testing |
|
