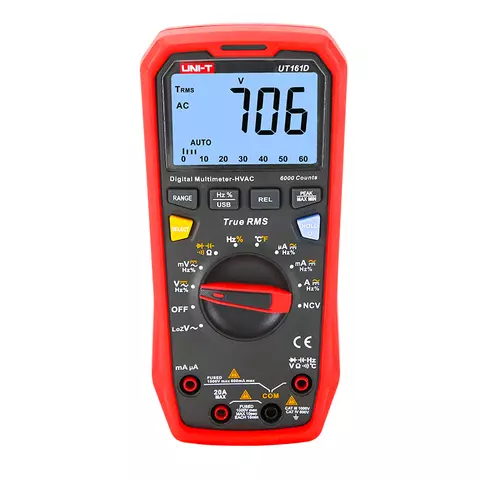

Digital Multimeter UNI-T UT161D (UT61D+ analogue)
id: 905850
Digital Multimeter UNI-T UT161D (UT61D+ analogue)
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
sales team
Overview
1 kg Warranty: 24 months
A reliable digital multimeter with a variety of features that can measure up to 1000V AC/DC. Read more
You may also like
Add to wishlist
ID: 898460
Digital Multimeter UNI-T UT61D+
USD 50.29
Add to wishlist
Add to cart
Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, duty ration, and is also used for continuity and diode testing.
Availability in stock:
HK
ID: 898460 0.8 kg
Frequently bought together
Add to wishlist
ID: 834649
Tweezers Measuring Probe UNI-T UT-L01
USD 3.92
Add to wishlist
Add to cart
Tweezers-type measuring probe for SMD component measuring with UNI-T measuring equipment.
Availability in stock:
HK
ID: 834649 0.061 kg
Description
UNI-T UT161D (UT61D+ analogue) is a True RMS digital multimeter that can measure AC/DC voltage/current, resistance, capacitance, frequency, duty ratio, and temperature and test diodes, transistors, and continuity. Equipped with sonic/visual alarm to provide warning when measuring high voltage/current and temperature. A wide range of embedded features makes it a practical measuring tool for many application areas.
Features
- True RMS;
- non-contact voltage (NCV) measurement function with sonic/visual alarm;
- measurement of low impedance alternating current voltages (LoZ ACV);
- peak hold function;
- Max/Min/Relative mode measurements;
- full scale overload protection;
- data hold and USD connectivity;
- low battery indication;
- auto power off;
- gold plated test leads;
- quality pointer display with high resolution
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC current | 10 A | ±(1.2%＋5) |
| 20 A | ||
| DC current | 10 A | ±(1%＋2) |
| 20 A | ||
| AC voltage | 1000 V | ±(1%＋3) |
| DC voltage | 1000 V | ±(0.5%＋3) |
| Resistance | 60 MΩ | ±(1%＋2) |
| 220 MΩ | ||
| Capacitance | 60 mF | ±(3%＋5) |
| 220 mF | ||
| Frequency | 10 MHz | ±(0.1%＋4) |
| 220 MHz | ||
| Temperature (°C/°F) | -40°C ~ 1000°C | ±(1%＋3) |
| -40°F ~ 1832°F | ±(1%＋6) | |
| Duty cycle | 0.1% ~ 99.9% | ±(2%＋5) |
| General Specifications | ||
| Display count | 6,000 | |
| Bandwidth | 40 Hz ~ 1 kHz | |
| Power | 1.5 V battery (R03) × 4 pcs. | |
| Dimensions | 190 mm × 90 mm × 50 mm | |
| Weight | 350 g | |
| Safety rating | CAT III 1000 V/CAT IV 600 V | |
Package Contents
- Digital multimeter UNI-T UT161D (UT61D+ analogue) – 1 pc.
- Test leads – 1 pair
- Temperature probe – 1 pc.
- USB cable – 1 pc.
- Carrying bag – 1 pc.
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| Frequency |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Capacitance |
|
| Continuity test |
|
| NCV |
|
| Battery Testing |
|
