Digital Multimeter UNI-T UT171B
id: 918903
Digital Multimeter UNI-T UT171B
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Price coming soon
Overview
Video
Video
Video
0.4 kg Warranty: 24 months
True RMS digital multimeter which measures AC/DC voltage, AC/DC current, resistance, admittance, capacitance, frequency, temperature and can be used for continuity and diode tests. Read more
Price coming soon
Description

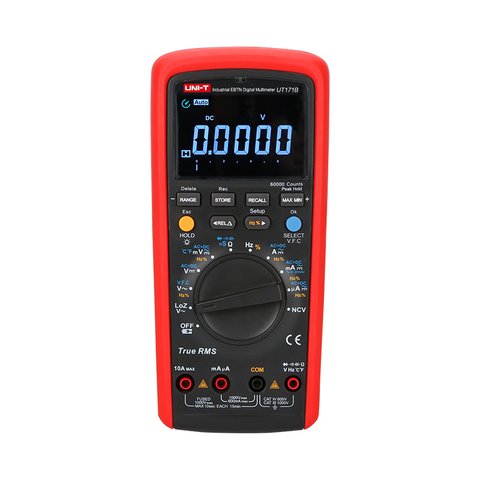

UNI-T UT171B is a True RMS digital multimeter which measures AC/DC voltage, AC/DC current, resistance, admittance, capacitance, frequency, temperature and can be used for continuity and diode tests.
Features
- Measurement functions:
- AC/DC voltage
- AC/DC current
- capacitance
- admittance
- resistance
- frequency
- temperature
- diode test
- continuity test
- True RMS measurements
- Data hold
- Auto power-off
- Auto ranging
- LCD with backlight
- Low battery indication
Technical Specifications
| Display | 60000 digit LCD, backlight, 70.6 x 35.3 mm | |
| DC voltage | Range | 600 mV / 6 V / 60 V / 600 V / 1000 V |
| Accuracy | ±(0.025%＋5) | |
| AC voltage | Range | 600 mV / 6 V / 60 V / 600 V / 750 V |
| Accuracy | ±(0.4%＋40) | |
| DC current | Range | 600 μA / 6000 μA / 60 mA / 600 mA / 6 A / 10 A |
| Accuracy | ±(0.15%＋2) | |
| AC current | Range | 600 μA / 6000 μA / 60 mA / 600 mA / 6 A / 10 A |
| Accuracy | ±(0.75%＋5) | |
| Resistance | Range | 600 Ω / 6 KΩ / 60 KΩ / 600 KΩ / 6 MΩ / 60 MΩ |
| Accuracy | ±(0.05%＋2) | |
| Admittance | Range | 60 nS |
| Accuracy | ±(1.0%＋10) | |
| Capacitance | Range | 6 nF / 60 nF / 600 nF / 6 μF / 60 μF / 600 μF / 6 mF / 60 mF |
| Accuracy | ±(2.5%+40) | |
| Frequency | 10 Hz ~ 10 MHz | |
| Temperature | -40 °C ~ 1000 °C (-40 °F ~ 1832 °F) | |
| Power | 7.4 V, 2000 mAh, Li-ion battery | |
| Dimensions | 206 × 95 × 55 mm | |
| Weight | 384 g | |
User Manual
Download UNI-T UT171B Digital Multimeter User Manual
Sofware
Download UNI-T UT171B Digital Multimeter Sofware
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- Multimeter UNI-T UT171B (1 pc.)
- Battery (1 pc.)
- Test leads (1 pair)
- Temperature probe (1 pc.)
- USB cable (1 pc.)
- Power adapter (1 pc.)
- User manual (1 pc.)
