True RMS multimeter with data recorder which measures AC/DC voltage and current, resistance, admittance, capacitance, frequency, temperature, duty cycle, pulse width and can be used for continuity and diode tests. Read more
Price coming soon
Description

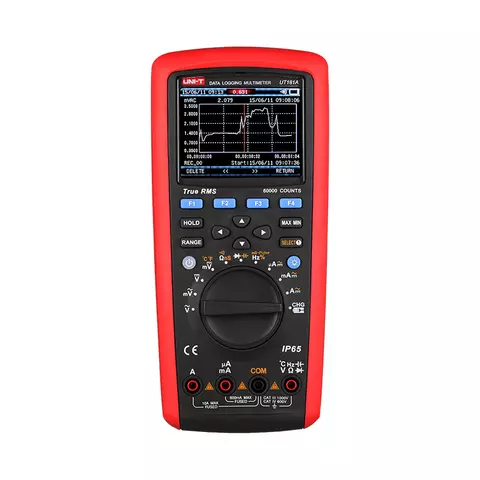

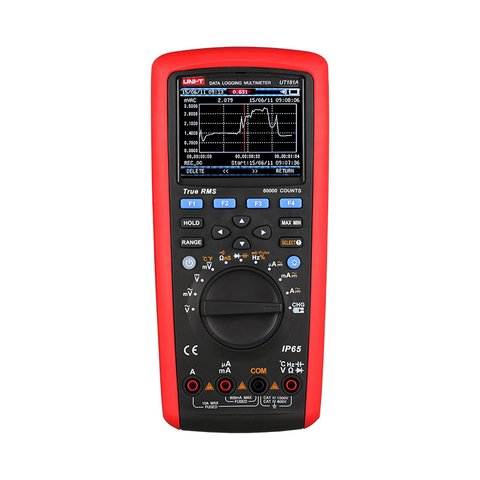

UNI-T UT181A is a True RMS multimeter which measures AC/DC voltage and current, resistance, admittance, capacitance, frequency, temperature, duty cycle, pulse width and can be used for continuity and diode tests.
Features
- True RMS measurements
- Data recorder
- 60000 digit 3.5-inch color LCD with backlight.
- Functions:
- AC/DC current and voltage
- resistance
- capacitance
- admittance
- frequency
- temperature (ºC and ºF)
- duty cycle
- pulse width
- continuity test (with buzzer)
- diode test
- Auto ranging
- Relative measurements
- Max/Min measurements
- Data Hold function
- Peak Hold function
- Fused 10A range
- Auto power off
- Low battery indication
Technical Specifications
| Display | 3.5-inch color TFT LCD (320 x 240) | |
| DC voltage | Range | 60 mV / 600 mV / 6 V / 60 V / 600 V / 1000 V |
| Accuracy | ±(0.025%+5) | |
| AC voltage | Range | 60 mV / 600 mV / 6 V / 60 V / 600 V / 1000 V |
| Accuracy | ±(0.3%+30) | |
| DC current | Range | 600 μA / 6000 μA / 60 mA / 600 mA / 10 A |
| Accuracy | ±(0.08%+10) | |
| AC current | Range | 600 μA / 6000 μA / 60 mA / 600 mA / 10 A |
| Accuracy | ±(0.6%+20) | |
| Resistance | Range | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ |
| Accuracy | ±(0.05%+2) | |
| Admittance | Range | 60 nS |
| Accuracy | ±(2%+10) | |
| Capacitance | Range | 6 nF / 60 nF / 600 nF / 6 μF / 60 μF / 600 μF / 6 mF / 60 mF |
| Accuracy | ±(2%+5) | |
| Frequency | Range | 10 Hz - 60 MHz |
| Accuracy | ±(0.01%+5) | |
| Temperature, ºC | Range | -40 ~ 1000 |
| Accuracy | ±(1%+30) | |
| Temperature, ºF | Range | 40 ~ 1832 |
| Accuracy | ±(1.5%+50) | |
| Duty cycle | 10% ~ 90% | |
| Power | 7.4 V, 3000 mAh, Li-ion battery | |
| Dimensions | 103 × 225 × 59 mm | |
| Weight | 638 g | |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
User Manual
Download UNI-T UT181A User Manual.
Sofware
Download UNI-T UT181A Sofware.
Package Contents
- Multimeter UNI-T UT181A — 1 pc.
- Temperature probe — 2 pcs.
- Test lead — 1 pair
- USB cable — 1 pc.
- Battery — 1 pc.
- Power adapter — 1 pc.
- Carrying case — 1 pc.
- User manual — 1 pc.
- Temperature measurement adapter — 1 pc.
- Charger adapter — 1 pc.
