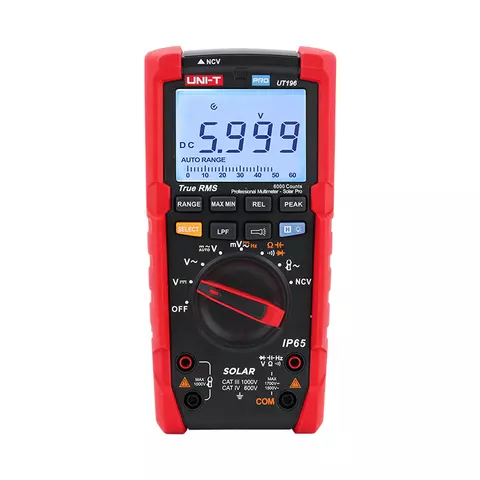

Digital Multimeter UNI-T UT196
id: 909425
0.8 kg Warranty: 24 months
Measures up to 1700 V DC voltage, up to 1500 V AC voltage, resistance, capacitance, and frequency. It is an ideal tool for solar power system maintenance. Read more
Frequently bought together
UNI-T UT196 is a digital multimeter that is perfect for solar power system maintenance in rugged environmental conditions. Being rugged and accurate, this meter is fully cased waterproof, and dustproof with an IP65 rating and tested to withstand 2 meters drop. The multimeter measures DC voltage up to 1700 V, AC voltage up to 1500 V, resistance, capacitance, and frequency.
Features
- True RMS.
- Measure up to 1700 V DC voltage and 1500 V AC voltage.
- IP65 protection.
- Safety standards: CAT III 1000V, CAT IV 600V.
- Analog bar.
- Frequency response:45 Hz~1 kHz.
- Low-pass filter function.
- Low impedance mode.
- Built-in flashlight, bright backlight, and visual alarm.
Technical Specifications
Function | Range | Accuracy |
---|---|---|
DC Voltage | 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1700 V | ±(0.2%+5) |
AC Voltage | 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1500 V | ±(0.8%+3) |
Low Pass Filter (LPF) | 6.000 V / 60.00 V / 600.0 V / 1500 V | ±(2%+9) |
Resistance | 600.0 Ω / 6.000 kΩ / 60.00 kΩ / 600.0 kΩ / 6.000 MΩ / 60.00 MΩ | ±(0.8%+2) |
Capacitance | 60.00 nF / 600.0 nF / 6.000 µF / 60.00 µF / 600.0 µF / 6.000 mF / 60.00 mF | ±(1.9%+5) |
Frequency | 60.00 Hz ~ 1.000 MHz | ±(0.08%+4) |
General Specifications | ||
Low Battery Indication | <7.5 V approximately | |
Display Count | 6000 | |
Auto Power Off | approximately 15 minutes | |
Power | 9V battery | |
IP Rating | IP65 | |
Drop Test | 2 m | |
Dimensions | 195 mm × 95 mm × 58 mm | |
Weight | 485 g |
Video
User Manual
Download UNI-T UT196 User Manual.
Package Contents
- Digital Multimeter UNI-T UT196 — 1 pc.
- Test Leads — 1 pair
- User Manual — 1 pc.
