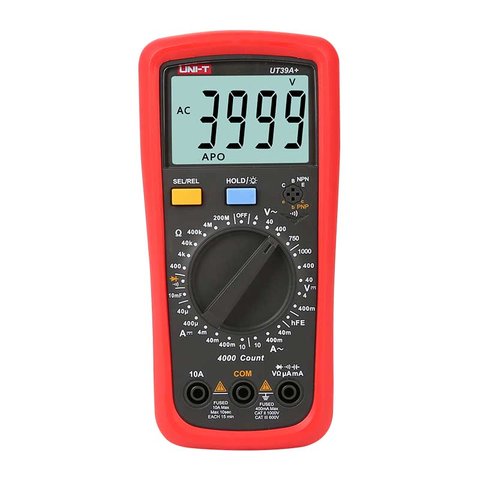

Digital Multimeter UNI-T UT39A+

id: 883715
0.5 kg
Availability in stock: HK
Warranty: 24 month (s)
Measures AC/DC voltage and current, resistance, capacitance, hFE (transistor measurement), Performs continuity and diode testing. Manual range selection.
USD 13.20
Add to cart
USD 13.20
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Note! This item is shipped within 7 working days.
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

UNI-T UT39A+ is a robust and reliable multimeter with overvoltage and overcurrent alarm, and high voltage protection.

Features

  • Testing & measurement functions:
    • AC/DC voltage;
    • AC/DC current;
    • resistance;
    • capacitance;
    • diode testing;
    • continuity testing;
    • hFE (transistor measurement).
  • Overcurrent alarm.
  • High voltage protection
  • Manual range selection.
  • Backlight.
  • Data hold function.
  • Low battery indication.
  • Auto power off.
  • Safety standards: CAT II 1000V, CAT III 600V.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Function Range Accuracy
DC voltage 400 mV / 4 V / 40 V / 400 V / 1000 V ±(0.5%+5)
AC voltage 4 V / 40 V / 400 V / 750 V ±(0.8%+3)
DC current 40 uA / 400 uA / 4 mA / 40 mA / 400 mA / 10 A ±(0.8%+3)
AC current 40 mA / 400 mA / 10 A ±(1%+2)
Resistance 400 Ω / 4000 Ω / 40 kΩ / 400 kΩ / 4 MΩ / 200 MΩ ±(0.8%+2)
Capacitance 4 nF / 40 nf / 400 nF / 4 uF / 40 uF / 400 uF / 4 mF / 10 mF ±(4%+5)
General Specifications
Power 1.5 B battery (R03) × 2
Display 4000 count, 56.5 × 36 mm
Frequency response 40 Hz ~ 400 Hz
Dimensions 175 × 83 × 53 mm
Weight 330 g

User Manual

PDF Download UNI-T UT39A+ user manual.

Package Contents

  1. Pocket Digital Multimeter UNI-T UT39A+ — 1 pc.
  2. Test leads — 2 pcs.
  3. User manual — 1 pc.

Note! Batteries are not included in the package.

Specifications
Type
  • digital
Range Selection
  • manual range
Digit Capacity
  • 3999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 200 MOhm
DC
  • up to 10 A
AC
  • up to 10 A
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
Capacitance
  • up to 10 000 μF
NCV
  • no
Battery Testing
  • no
